Section 03-01D: Engine, Diesel, 7.3L
1996 F-Series Workshop Manual
REMOVAL AND INSTALLATION

Camshaft



Removal

  1. Remove the engine (6007).

  1. NOTE: The camshaft (6250) can be removed without removing the cylinder heads (6049) and valve tappets (6500) if desired. Remove the rocker arms and push rods (6565) making sure to keep them in order for assembly. Rotate the engine on the engine stand until in the vertical position, tipped slightly back so the valve tappets will slide away from the camshaft. Rotate the camshaft three or four times to push the valve tappets away from the camshaft lobes.

    Before removing the camshaft, inspect camshaft sprocket backlash. Refer to Drive Gear Backlash (All Gears) in the Service Procedures portion of this section. Inspect camshaft sprocket end play. Refer to Section 03-00.

  1. Remove the engine front cover (6019).

  1. Remove the valve tappets.

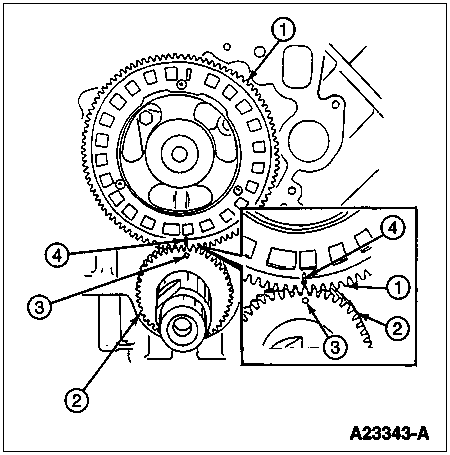

  1. Rotate the crankshaft (6303) to align the camshaft sprocket and crankshaft sprocket timing marks.

    ItemPart NumberDescription
    16256Camshaft Gear
    26306Crankshaft Gear
    3—Crankshaft Gear Timing Mark (Part of 6306)
    4—Camshaft Gear Timing Mark (Part of 6256)

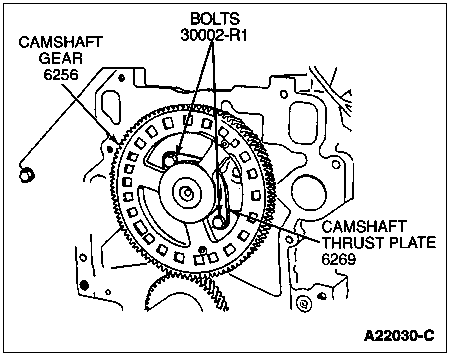

  1. Remove the camshaft thrust plate retaining bolts.

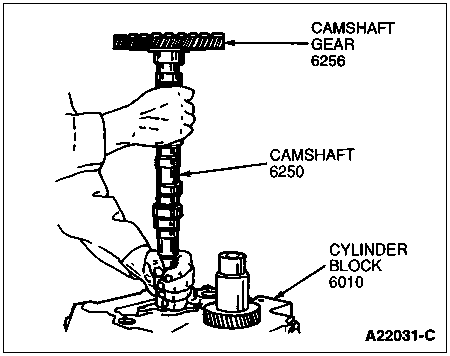

  1. Remove the camshaft, camshaft gear and camshaft thrust plate (6269) as an assembly.

  1. Inspect the camshaft lobes and journals. Refer to Section 03-00.

Installation

Before installing, coat the camshaft lobes with Multi-Purpose Grease D0AZ-19584-AA or equivalent meeting Ford specification ESB-M1C93-B. Lubricate the camshaft journals with diesel engine oil specified for this engine.

  1. Carefully slide the camshaft, with the camshaft gear and camshaft thrust plate, down into the camshaft bearings (6A251). Make sure the camshaft gear and crankshaft gear timing marks are properly aligned after the camshaft is installed.

    ItemPart NumberDescription
    16256Camshaft Gear
    26306Crankshaft Gear
    3—Crankshaft Gear Timing Mark (Part of 6306)
    4—Camshaft Gear Timing Mark (Part of 6256)

  1. Install the camshaft thrust plate retaining bolts. Tighten bolts to the standard torque specification listed at the end of this section.

  1. NOTE: If the camshaft was removed without removing the cylinder heads and valve tappets, install the rocker arms and push rods in their original order. Refer to Rocker Arm Cover, Rocker Arm and Push Rod, Right or Left, in the Removal and Installation portion of this section.

    Install the valve tappets.

  1. Install the engine front cover.

  1. Install the engine. Refer to Engine — Automatic Transmission or Engine — Manual Transmission in the Removal and Installation portion of this section.
