Section 10-03: Speed Control System, Electronic
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Speed Control Actuator

Removal

  1. Remove speed control actuator cable (9A825) from speed control servo (9C735). Refer to Speed Control Servo in the Removal and Installation portion of this section.

  1. Remove speed control actuator cable from throttle bracket.

  1. Remove speed control actuator cable from accelerator cable (9A758).

Installation

  1. Snap speed control actuator cable onto accelerator cable.

  1. Snap speed control actuator cable to throttle cable bracket.

  1. Attach speed control actuator cable to speed control servo. Refer to Speed Control Servo in the Removal and Installation portion of this section.

  1. Adjust speed control actuator cable. Refer to Actuator Cable in the Adjustments portion of this section.

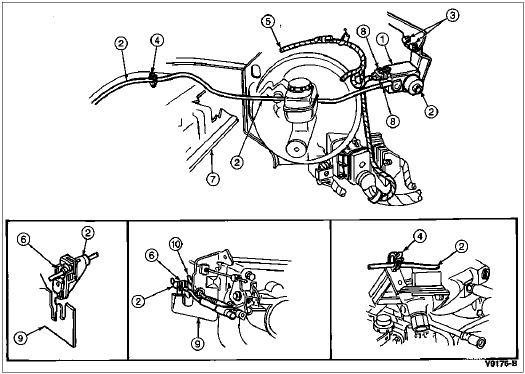

    Speed Control and Cable Installation, 7.5L MFI Engine, F-Series





    ItemPart NumberDescription
    19C735Speed Control Servo
    29A825Speed Control Actuator Cable
    3N605786-S6Bolt
    414A163Clamp
    512A581Engine Control Sensor Wiring
    6N804323-SClip
    76007Engine
    8—Connector (Part of 12A581)
    99723Accelerator Cable Bracket
    109A758Accelerator Cable
