Pull on connector opposite to the direction of installation to verify that the connector is locked in place. If connector is not locked in place, refer to Spring Lock Coupling procedure in the Removal and Installation portion of this section.
Section 10-01A: Fuel Tank, Filters, Tubes and Electric Fuel Pump, Gasoline Engines | 1996 F-150, F-250, F-350, F-Super Duty and Bronco with Gasoline Engines Workshop Manual |

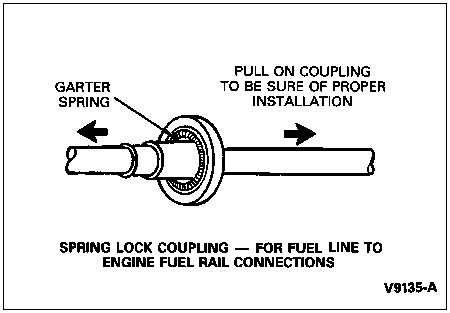

Visually check to be sure garter spring is over flared end of female fitting.
Pull on connector opposite to the direction of installation to verify that the connector is locked in place. If connector is not locked in place, refer to Spring Lock Coupling procedure in the Removal and Installation portion of this section.

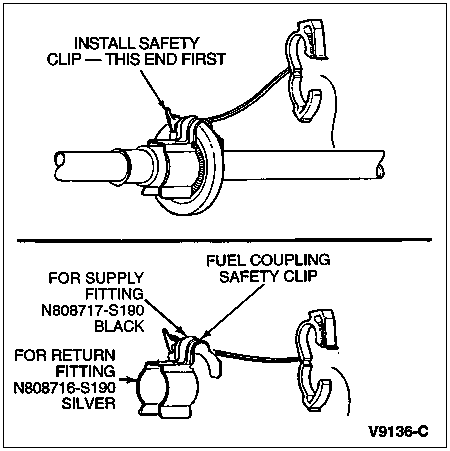

Install large end of clip to garter spring side of fuel tube making sure that clip is properly positioned. The black 12.7mm (1/2-inch) clip fits the fuel supply tube. The silver 9.5mm (3/8-inch) clip fits fuel return tube. Refer to the following illustration.

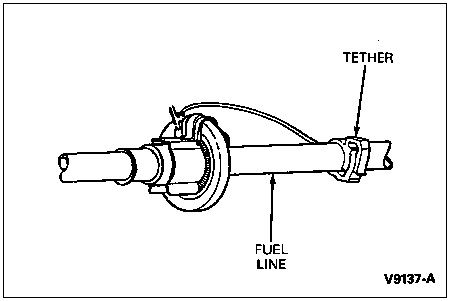

Attach the tether to the fuel tube and snap shut.
