Section 03-01B: Engine, 5.0L and 5.8L MFI
1996 F-150, F-250, F-350 and Bronco Vehicles Equipped with 5.0L or 5.8L MFI Engines Workshop Manual
IN-VEHICLE SERVICE

Timing Chains and Sprockets




Removal

  1. NOTE: To remove timing chain cover, refer to Engine Front Cover, Removal in the In-Vehicle Service portion of this section.

    Check the timing chain/belt (6268) deflection. Refer to Section 03-00. If deflection exceeds specifications (12.7mm [0.50 inch]), replace the chain and sprockets.

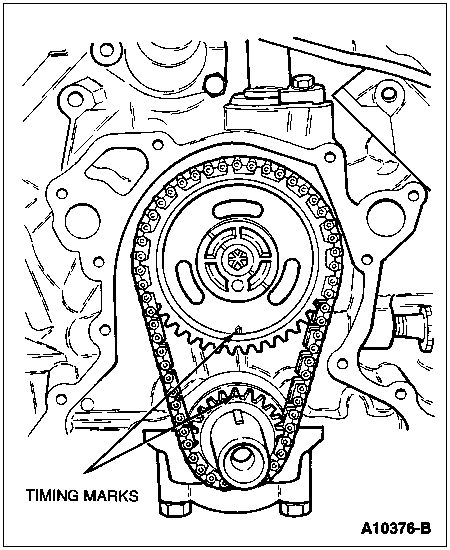

  1. Crank the engine (6007) until the timing marks on the sprockets are positioned as shown.

  1. Remove the camshaft sprocket capscrew and washers. Slide both sprockets and the timing chain/belt forward, and remove them as an assembly.

Installation

  1. Position the sprockets and timing chain/belt on the camshaft (6250). Be sure the timing marks on the sprockets are positioned as shown.

  1. Install the washers and camshaft sprocket capscrew. Tighten the sprocket capscrew to 54-61 Nm (40-45 lb-ft).

  1. Lubricate the timing chain/belt and sprockets with heavy engine oil.
