Section 01-10: Seats and Tracks
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Pad Adjuster, Front Seat Back

Removal

  1. Remove front seat (60012) and front seat tracks (61704) as described in Seat Assembly, 40/20/40 Bench in the Removal and Installation portion of this section. Place the seat on a clean surface.

  1. Remove front seat back cover (64416) as described in Seat Cushion Cover and/or Pad in the Removal and Installation portion of this section.

  1. Disconnect front seat back pad adjusting hose (65528).

  1. Using a screwdriver, push the 4 plastic pushpins out of the front seat back frame.

  1. Remove front seat back pad adjuster (65500) from front seat back frame (61018).

Installation

  1. Position front seat back pad adjuster to front seat back frame. Return the 4 plastic pushpins to their original holes in the front seat back pad adjuster.

  1. Connect front seat back pad adjusting hose to front seat back pad adjuster.

  1. Install front seat back cover as described in Seat Cushion Cover and/or Pad, Bench Seat in the Removal and Installation portion of this section.

  1. Install the front seat and front seat tracks into vehicle as described in Seat Assembly, 40/20/40, Bench in the Removal and Installation portion of this section.

  1. Check the front seat tracks and front seat back pad adjuster for proper operation.

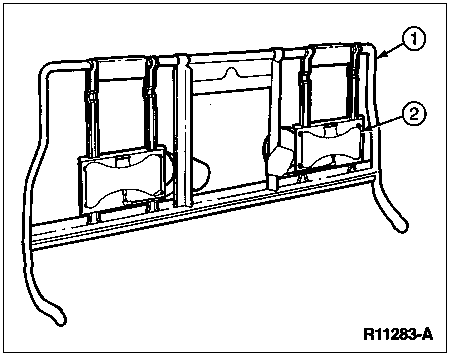

    ItemPart NumberDescription
    161018Front Seat Back Frame
    265500Front Seat Back Pad Adjuster
