Section 01-10: Seats and Tracks
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Seat Cushion Cover and/or Pad, Bench Seat



Removal

  1. Remove seat assembly from vehicle by removing bolts attaching front seat tracks (61704) to front floor pan (11135).

  1. Remove front seat back (64810) from front seat cushion frame and spring (63100).

  1. Cut hog rings retaining the front seat cushion cover (62900) to front seat cushion frame and spring. Remove cover.

  1. If replacing padding, cut hog rings attaching the front seat cushion pad (632A22) to front seat cushion frame and spring and remove front seat cushion pad.



Installation

  1. Follow removal procedures in reverse order.

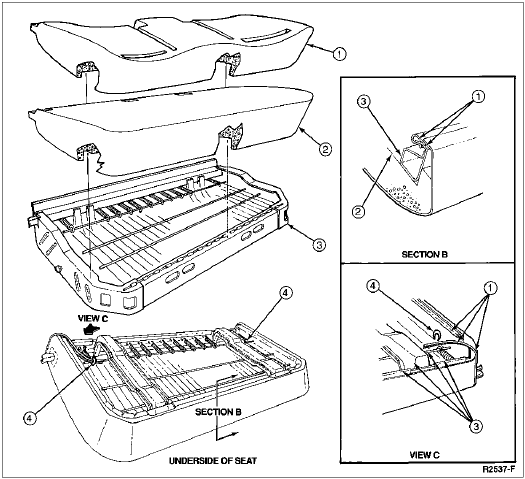

    Seat Cushion Cover Installation, Front, Typical View





    ItemPart NumberDescription
    162900Front Seat Cushion Cover
    2632A22Front Seat Cushion Pad
    363100Front Seat Cushion Frame and Spring
    4—Hog Ring
    (Part of 64416)
