Section 01-02: Body Panels, Front End | 1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual |
Removal
Open hood (16612) and suitably support.
Remove headlamp door. Refer to Section 01-08.
Remove radiator grille (8200) as described in Radiator Grille in the Removal and Installation portion of this section.
Remove screw(s) and washer(s) attaching radiator grille opening panel reinforcement (8A284) to front fender body (16015).
Remove screw and washers attaching hood latch support brace (16747) to radiator grille opening panel reinforcement.
Remove radiator grille opening panel reinforcement.
Installation
Follow removal procedures in reverse order. Tighten front fender body attaching screws and washers to 9-14 Nm (80-124 lb-in). Tighten hood latch support brace screws to 24-31 Nm (18-23 lb-ft).

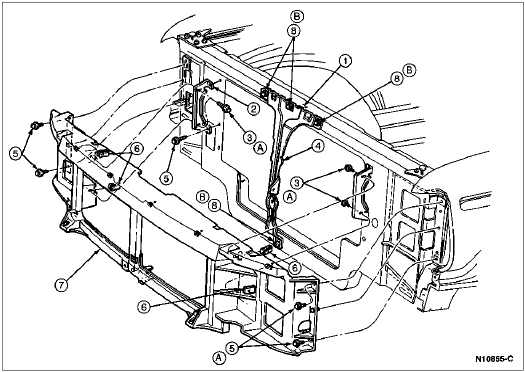

| Item | Part Number | Description |
|---|---|---|
| 1 | 16138 | Radiator Support |
| 2 | 8B455 | Radiator Grille Opening Panel Bracket |
| 3 | N805230-S55 | Screw and Washer (2 Req'd Each Side) |
| 4 | 16747 | Hood Latch Support Brace |
| 5 | N805230-S55 | Screw and Washer (2 Req'd Each Side) |
| 6 | N805889-S100 | U-Nut (2 Req'd Each Side) |
| 7 | 8A284 | Radiator Grille Opening Panel Reinforcement |
| 8 | N606688-S55 | Screw and Washer |
| A | — | Tighten to 9-14 Nm (80-124 Lb-In) |
| B | — | Tighten to 24-31 Nm (18-23 Lb-Ft) |
