Section 01-14A: Handles, Locks, Latches and Mechanisms | 1997 F-250 Heavy Duty, F-350 and F-Super Duty Chassis Cab Workshop Manual |
Removal
Put window in the full up position.
Remove rear door trim panel (27406) and watershield from rear door. Refer to Section 01-05.
Remove screw attaching front door latch remote control and link (21818) to rear door latch remote control support bracket.
Disconnect rear door remote control from rear door latch remote control link.
Disconnect rear door latch remote actuator link from rear door latch (26412).
Disconnect rear door latch control rod link from rear door latch.
Disconnect rear door latch actuating rod (26596) from door handle (22404) clip.
Remove three screws attaching rear door latch to rear door.
Remove rear door latch from rear door.
Installation
NOTE: Attach double 90-degree rods to rear door latch before latch installation.
Follow removal procedure in reverse order.
Tighten rear door latch screws to 4-8 Nm (35-71 lb-in).
Tighten front door latch remote control and link screw to 9-14 Nm (80-124 lb-in).

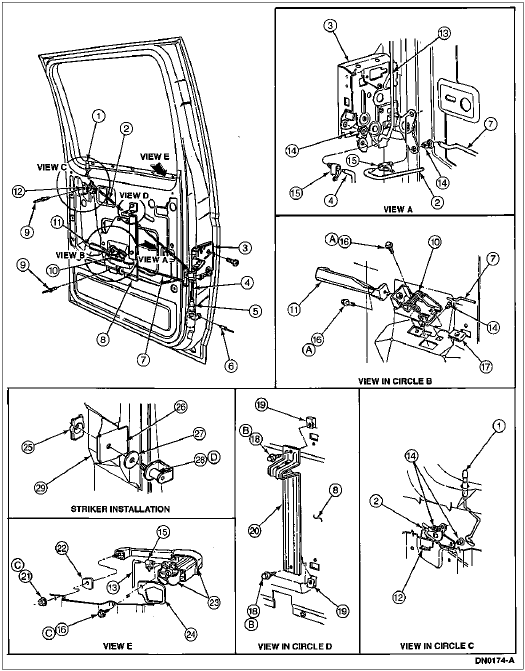

Door, Rear, Crew Cab
| Item | Part Number | Description |
|---|---|---|
| 1 | 264A80 | Rear Door Latch Push Button Rod |
| 2 | 26408 | Rear Door Latch Control Rod Link |
| 3 | 26412 | Rear Door Latch |
| 4 | — | Rear Door Latch Remote Actuator Link (Part of 26594) |
| 5 | 26594 | Rear Door Electric Latch Actuator |
| 6 | 388047-S101 | Rivet |
| 7 | 26442 | Rear Door Latch Remote Control Link |
| 8 | 26592 | Rear Door Latch Remote Control Support Bracket |
| 9 | 385189-S100 | Rivet |
| 10 | 1021818 | Rear Door Latch Remote Control and Link |
| 11 | 22600 | Inside Door Handle |
| 12 | 26448 | Rear Door Latch Bellcrank |
| 13 | 26596 | Rear Door Latch Actuating Rod |
| 14 | 386656-S | Bushing |
| 15 | 389760-S | Clip |
| 16 | N800527-S100 | Screw and Washer Assy |
| 17 | N623332-S100 | Spring Nut |
| 18 | N610939-S2 | Screw and Washer Assy |
| 19 | N802539-S100 | Spring Nut |
| 20 | 24022 | Door Arm Rear Support Assy |
| 21 | N621906-S2 | Nut and Washer Assy |
| 22 | 22448 | Outside Door Handle Small Pad |
| 23 | 22404 | Door Handle, Outside |
| 24 | 22428 | Outside Door Handle Large Pad |
| 25 | 22024 | Door Latch Striker Tapping Plate |
| 26 | — | Striker Support Bracket (Part of 24357) |
| 27 | N805584-S | Washer |
| 28 | 22008 | Door Latch Striker Plate |
| 29 | 24357 | Center Body Pillar Inside Upper Finish Panel |
| A | — | Tighten to 9-14 Nm (80-124 Lb-In) |
| B | — | Tighten to 1-2 Nm (9-18 Lb-In) |
| C | — | Tighten to 7-11 Nm (62-97 Lb-In) |
| D | — | Tighten to 35-45 Nm (26-33 Lb-Ft) |
