CAUTION: Removal of connector by pulling wire will damage connector's locking mechanism, resulting in a loose fitting connection when installed.
Grasp each end of connector body.
Section 18-01: Wiring and Circuit Protection | 1996 F-150, F-250, F-350, F-Super Duty Chassis Cab, Motorhome Chassis, and Bronco Workshop Manual |

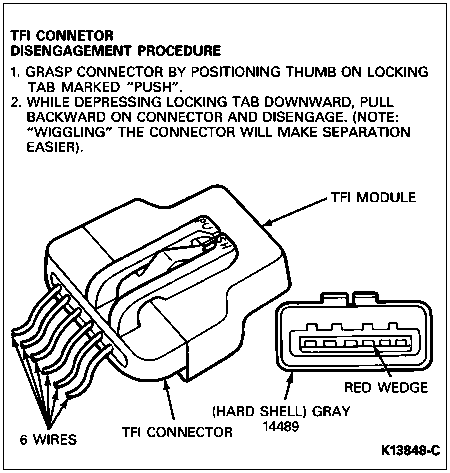

The various connector disengagement procedures should be used when disconnecting the various types of connectors.
Disengagement Using a Screwdriver

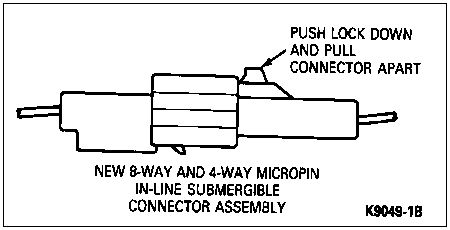

Disengagement by Hand, Submergible Pin-Type
CAUTION: Removal of connector by pulling wire will damage connector's locking mechanism, resulting in a loose fitting connection when installed.
Grasp each end of connector body.
NOTE: Wiggling the parts will make separation easier.

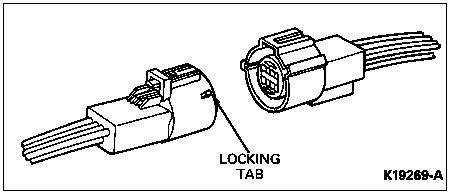

While holding connector body, use thumb pressure to depress locking tab and pull connector apart.
