Fuse Panel, F-150, F-250, F-350, F-Super Duty and Bronco
Section 18-01: Wiring and Circuit Protection | 1996 F-150, F-250, F-350, F-Super Duty Chassis Cab, Motorhome Chassis, and Bronco Workshop Manual |
Each vehicle has a fuse panel that contains most of the fuses used in the electrical system.
Location
The fuse panels for F-150, F-250, F-350, F-Super Duty Chassis and Bronco are located on the instrument panel behind an access door, left of the steering column. The location of the fuse panel for the Motorhome Stripped Chassis is up to the body builder. The fuse panel for these models is usually located under the instrument panel near the steering column.
Fuse Panel, F-150, F-250, F-350, F-Super Duty and Bronco
| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | Wiring Assembly — Main |
| 2 | 14401 | Fuse Panel |
| 3 | 14401 | Wiring Assembly — Main |
| 4 | — | Fuse (3 Amp) DI Diesel |
| 5 | 14526 | Circuit Breaker (20 Amp) |
| 6 | 14A254 | Fuse Panel Bracket |
| 7 | 14526 | Circuit Breaker (20 Amp) |
| 8 | 13350 | Turn Signal Flasher Assembly |
| 9 | N803876-S424 | Screw |
Content
The following circuit protection charts give the location and values of all the circuits containing fuses or circuit breakers.

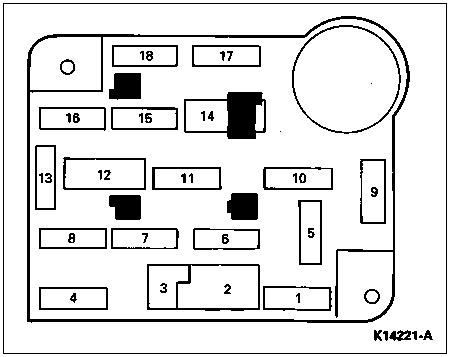

Fuse Panel, F-Series and Bronco
| Fuse Protection | Amps | Circuits Protected |
|---|---|---|
| 1 | 30 | Heater/A/C Blower |
| 2 | 30 | Wiper/Washer |
| 3 | 3A | Idle Switch (Diesel Only) |
| 4 | 15 | Warning Buzzer/Chime Module, Exterior Lamps, Instrument Illumination, Trailer Exterior Lamp Relay |
| 5 | 10 | Air Bag Restraint |
| 6 | 15 | A/C Clutch, Diesel Aux. Fuel Selector a, Remote Keyless Entry |
| 7 | 15 | Turn Lamps, Rear Window Defrost a |
| 8 | 15 | Courtesy/Dome/Cargo Lamps, Electric Outside Mirrors, Speedometer Memory, Warning Buzzer/Chime Module, Overhead Console (Bronco) Sun Visor Illumination (Bronco) |
| 9 | 25 | Power Point |
| 10 | 4 | Instrument Illumination |
| 11 | 15 | Radio, Radio Display Dim |
| 12 | 20 C.B. | Power Door Locks, Electronic Shift Motor 4WD, Power Lumbar, Tailgate Power Window, Key Switch a, Power Driver Seat (SuperCab Only) |
| 13 | 15 | Stop/Hazard Lamps, Anti-Lock Brake Module Memory Power (F-Series Only), Speed Control, Stop Sense for: Powertrain Control, Anti-Lock Brakes, Automatic Transmission Shift Interlock |
| 14 | 20 C.B. | Power Windows, Tailgate Power Window, Instrument Panel Switch a |
| 15 | 20 | Anti-Lock Brakes (F-Series Only) |
| 16 | 15 | Cigar Lighter, Data Link Connector |
| 17 | 10 | Warning Buzzer/Chime Module, Warning Indicators, Diesel Indicators a, Gauges, Tachometer, Transmission Control Switch |
| 18 | 10 | Electronic Shift Module 4WD, Speedometer, Air Bag Restraint, Automatic Transmission Shift Interlock, Automatic Day/Night Mirror Overhead Console (Bronco), APCM (Diesel) |

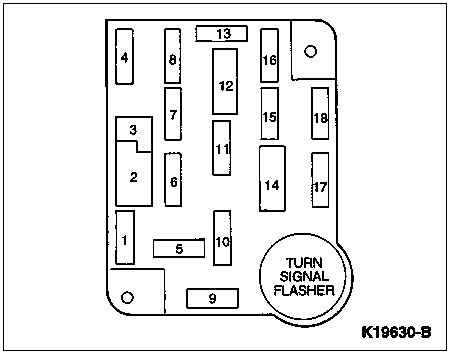

| Fuse Position | Amps | Circuits Protected |
|---|---|---|
| 1 | — | Not Used |
| 2 | 30 | Windshield Wiper/Washer, Internal Wiper/Washer |
| 3 | — | Not Used |
| 4 | 15A | Instrument Panel Warning Lamps, PSOM, Warning Chime |
| 5 | 20A | PSOM, Marker Lamps, Instrument Panel Lights Main Light Switch |
| 6 | 10A | Body Builder Accessory Feed (Accessory and Run) |
| 7 | 15A | Daytime Running Lamps, Turn Signal Lamp, Overdrive Cancel Switch, Brake Shift Interlock |
| 8 | 15A | Body Builder Accessory Feed (Run Only) |
| 9 | 15 | Hazard Lamps, Stoplamps, Brake Pressure Switch |
| 10 | — | Not Used |
| 11 | — | Not Used |
| 12 | — | Not Used |
| 13 | 5A | Instrument Panel Illumination |
| 14 | 5A | Radio Feed |
| 15 | — | Not Used |
| 16 | — | Not Used |
| 17 | — | Not Used |
| 18 | — | Not Used |
