Section 17-02: Lighting, Interior
1996 F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco Vehicles Workshop Manual
REMOVAL AND INSTALLATION

Lamp, Dome/Map Combination

Lens, Dome Lamp

Removal

  1. Carefully pry pillar/dome lamp lens (13783) from interior lamp body (13786).

Installation

  1. Align pillar/dome lamp lens with interior lamp body and carefully push pillar/dome lamp lens into interior lamp body.

Housing

Removal

  1. Carefully pry pillar/dome lamp lens from interior lamp body.

  1. Remove screws retaining interior lamp (13776) (dome/map) to roof trim panel (51968).

  1. Disconnect courtesy or interior lamp switch wiring (13A709) from lamp socket.

  1. Remove interior lamp (dome/map) from roof trim panel.

Installation

  1. Follow removal procedures in reverse order.

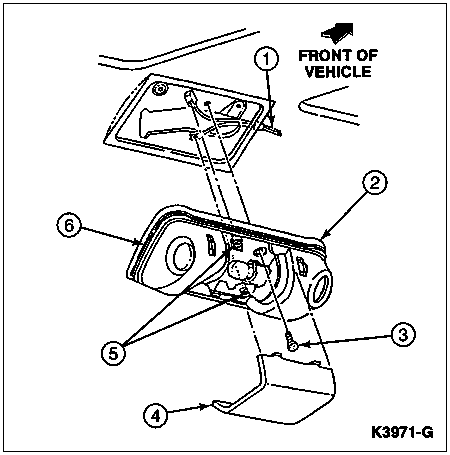

    Dome/Map Lamp, F-150, F-250, F-350, SuperCab, F-Super Duty and Bronco





    ItemPart NumberDescription
    114334Wiring Assembly
    213376Gasket
    352814Screw
    413783Pillar/Dome Lamp Lens
    513376Screw
    613776Interior Lamp (Dome)
