Tighten screws to 1.8-2.6 Nm (16-23 lb-in).
| Item | Part Number | Description |
|---|---|---|
| 1 | 14334 | Wiring Assembly |
| 2 | 13376 | Screw |
| 3 | 13783 | Pillar/Dome Lamp Lens |
| 4 | 52814 | Screw |
| 5 | 13466 | Miniature Bulb |
| 6 | 13786 | Interior Lamp Body |
Section 17-02: Lighting, Interior | 1996 F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco Vehicles Workshop Manual |
Lens
Removal
Carefully pry the pillar/dome lamp lens (13783) at the corners from the housing.
Installation
Align pillar/dome lamp lens with housing and carefully push pillar/dome lamp lens into housing.
Housing
Removal
Carefully pry the pillar/dome lamp lens at the corners from the housing.
Remove miniature bulbs (13466) from retainer.
Remove three screws retaining interior lamp body (13786).
Disconnect courtesy or interior lamp switch wiring (13A709).
Remove interior lamp body.
Installation
Follow removal procedures in reverse order.
Tighten screws to 1.8-2.6 Nm (16-23 lb-in).

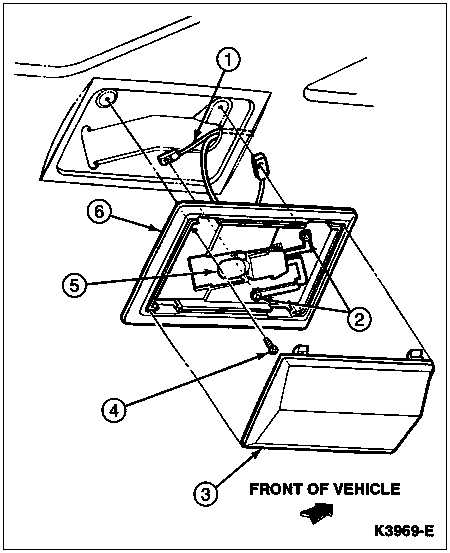

| Item | Part Number | Description |
|---|---|---|
| 1 | 14334 | Wiring Assembly |
| 2 | 13376 | Screw |
| 3 | 13783 | Pillar/Dome Lamp Lens |
| 4 | 52814 | Screw |
| 5 | 13466 | Miniature Bulb |
| 6 | 13786 | Interior Lamp Body |
