Section 17-01: Lighting, Exterior | 1996 F-150, F-250, F-350, F-Super Duty Motorhome and Bronco Workshop Manual |

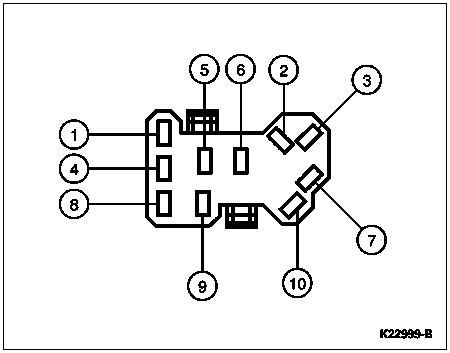

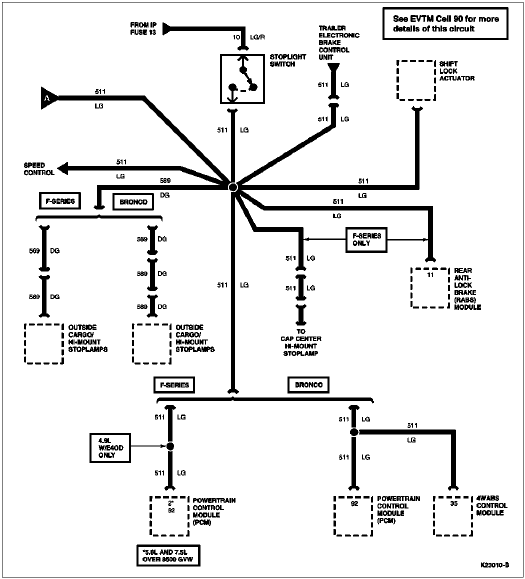

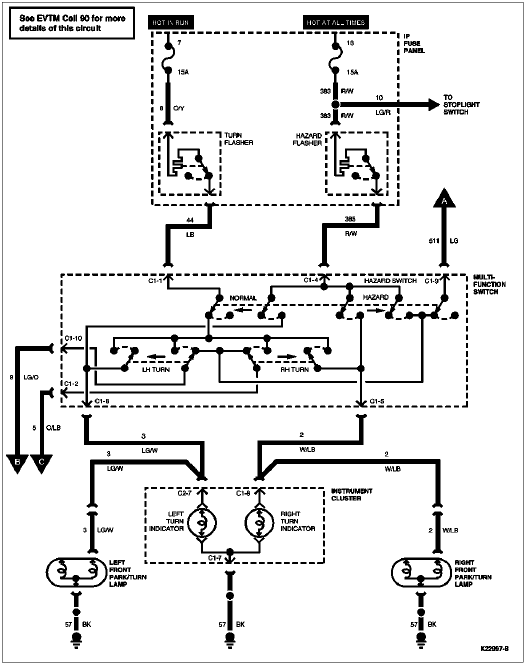

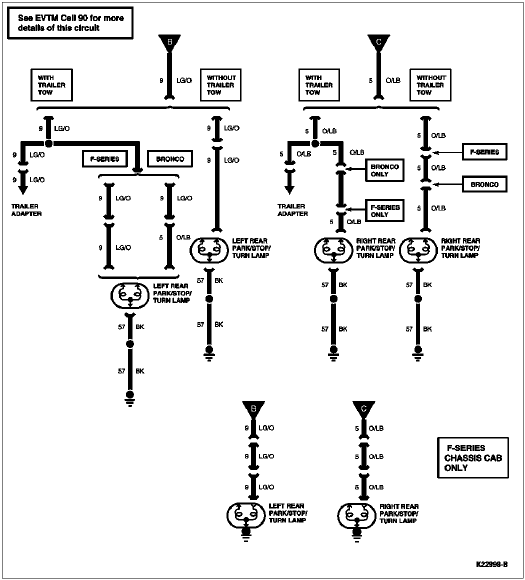

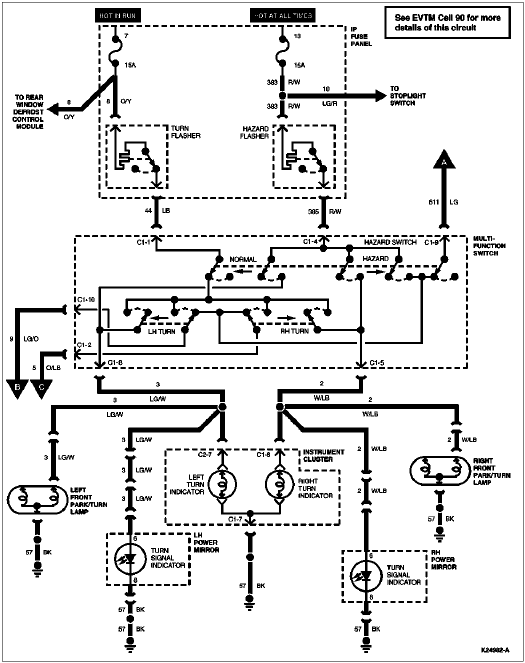

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 44 (LB) | Intermittent Power from Turn Signal Flasher to Turn Signal Switch |
| 2 | 5 (O/LB) | Output to Right Rear Turn Lamp |
| 3 | — | Not Used |
| 4 | 385 (W/R) | Intermittent Power from Hazard Flashers |
| 5 | 2 (W/LB) | Output to Right Front Turn Lamp |
| 6 | — | Not Used |
| 7 | — | Not Used |
| 8 | 3 (LG/W) | Output to Left Front Turn Lamp |
| 9 | 511 (LG) | Intermittent Power from Stoplight Switch |
| 10 | 9 (LG/O) | Output to Left Rear Turn Lamp |

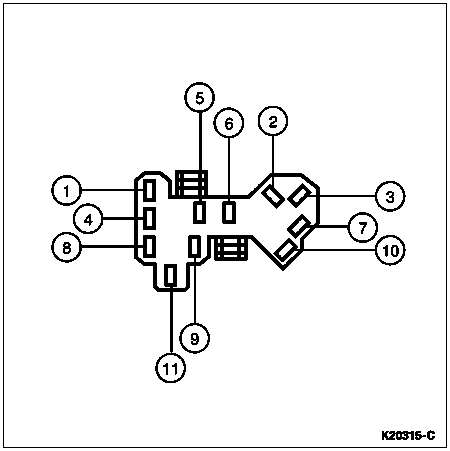

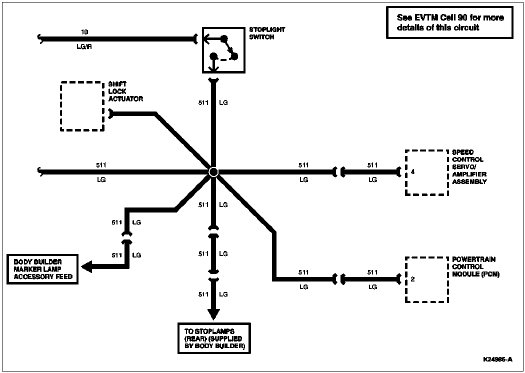

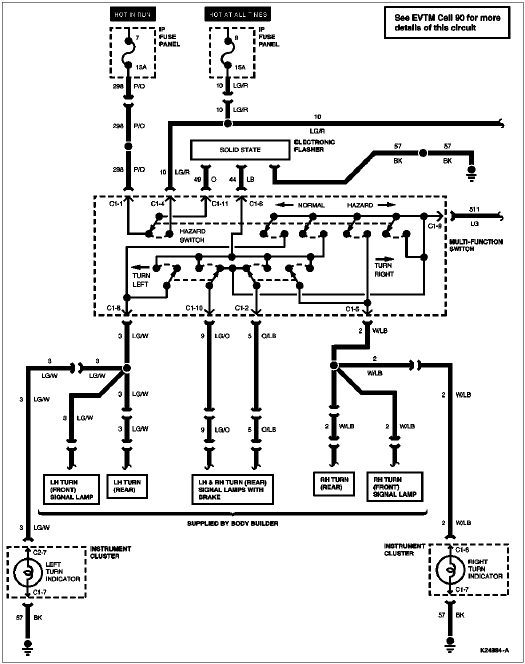

| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 298 (P/O) | Power (Hot in RUN) |
| 2 | 5 (O/LB) | Right Stop/Turn Lamps |
| 3 | — | Not Used |
| 4 | 10 (LG/R) | Power (Hot at All Times) |
| 5 | 2 (W/LB) | Right Turn Indicator and Lamps |
| 6 | 44 (LB) | Turn Signal Flasher Input |
| 7 | — | Not Used |
| 8 | 3 (LG/W) | Left Turn Indicator and Lamps |
| 9 | 511 (LG) | Stoplamp Input |
| 10 | 9 (LG/O) | Left Stop/Turn Lamps |
| 11 | 49 (O) | Flasher Input |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 589 (O) | Windshield Wiper Intermittent Governor Ground |
| 2 | 15 (R/Y) | Headlamp Dimmer Switch Feed (High/Low Beam Selection) |
| 3 | 13 (R/BK) | Low Beams |
| 4 | 993 (BR/W) | Intermittent Governor to Windshield Wiper Switch |
| 5 | 12 (LG/BK) | High Beams |
| 6 | 590 (DB/W) | Intermittent Governor to Windshield Wiper Switch |
| 7 | 196 (DB/O) | Flash-to-Pass Power Feed to High Beams |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 904 (LG/R) | Charge Indicator Lamp |
| 2 | 932 (GY/W) | High Beam Indicator Input |
| 3 | 57 (BK) | Ground |
| 4 | 450 (DG/LG) | Fasten Belt Indicator Input |
| 5 | 29 (Y/W) | Fuel Level Input (with Tachometer) |
| 6 | 19 (LB/R) | Instrument Cluster Illumination Input |
| 7 | 57 (BK) | Ground |
| 8 | 2 (W/LB) | Right Turn Input |
| 9 | 648 (W/PK) | Tachometer Input Signal |
| 10 | 398 (BK/Y) | Tachometer Ground (8 Cylinder Gasoline Only) |
| 11 | 784 (LB/BK) | Low Range Indicator Input |
| 12 | 210 (LB) | 4x4 Indicator Input |
| 13 | 640 (R/Y) | Power (Hot in START or RUN) |
| 14 | 16 (R/LG) | Charge Indicator Input |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 875 (BK/LB) | Unique Ground to Gauges |
| 2 | 658 (PK/LG) | PCM to Check Engine Indicator Lamp |
| 3 | 603 (DG) | Failure Warning Light (ABS) |
| 4 | 977 (P/W) | Brake Warning Indicator Input |
| 5 | — | Not Used |
| 6 | 29 (Y/W) | Fuel Level Input (Without Tachometer) |
| 7 | 3 (LG/W) | Left Turn Input |
| 8 | 31 (W/R) | Oil Pressure Indicator to Oil Pressure Sending Unit |
| 9 | 875 (BK/LB) | Unique Ground to Gauges |
| 10 | 39 (R/W) | Temperature Gauge to Temperature Sending Unit |
| 11 | 531 (DG/Y) | Brake Fluid Level Switch Input |
| 12 | 608 (BK/Y) | Air Bag Warning Lamp |
| 13 | 640 (R/Y) | Power (Hot in START or RUN) |
| 14 | — | Not Used |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 904 (LG/R) | Charge Indicator Lamp |
| 2 | 12 (LG/BK) | High Beam Indicator Input |
| 3 | 57 (BK) | Tachometer Ground |
| 4 | 450 (DG/LG) | Fasten Belt Indicator Input |
| 5 | 29 (Y/W) | Fuel Level Input |
| 6 | 19 (LB/R) | Instrument Cluster Illumination Input |
| 7 | 57 (BK) | Ground |
| 8 | 2 (W/LB) | Right Turn Input |
| 9 | 11 (T/Y) | Tachometer Input Signal |
| 10 | 57 (BK) | Tachometer Ground |
| 11 | — | Not Used |
| 12 | 608 (BK/Y) | Door Ajar Input |
| 13 | 640 (R/Y) 489 (PK/BK) | Power (Hot in START or RUN) |
| 14 | 16 (R/LG) | Power (Hot in START or RUN) |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 57 (BK) | Ground |
| 2 | — | Not Used |
| 3 | 658 (PK/LG) | Check Engine Indicator Input |
| 4 | 977 (P/W) | Brake Warning Indicator Input |
| 5 | — | Not Used |
| 6 | — | Not Used |
| 7 | 3 (LG/W) | Left Turn Input |
| 8 | 31 (W/R) | Oil Pressure Input |
| 9 | 397 (BK/W) | Ground |
| 10 | 39 (R/W) | Temperature Input |
| 11 | — | Not Used |
| 12 | — | Not Used |
| 13 | 640 (R/Y) 640 (R/Y) | Power (Hot in START or RUN) |
| 14 | 640 (R/Y) | Power (Hot in START or RUN) |
