Section 15-03: Speakers
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Radio Speakers, Rear, Bronco

Removal

  1. Remove grille from trim panel.

  1. Remove four speaker screws.

  1. Remove radio speaker (18808) and disconnect the wires at the connector located behind the speaker.

  1. If the radio speaker mounting bracket (18807) needs to be removed, the rear quarter trim panel must be removed. Refer to Section 01-05 for rear quarter trim panel removal and installation procedures.

  1. Remove the three bracket screws and remove the radio speaker mounting bracket. Lift locking tab and pull on connector to remove.



Installation

  1. Follow removal procedures in reverse order.

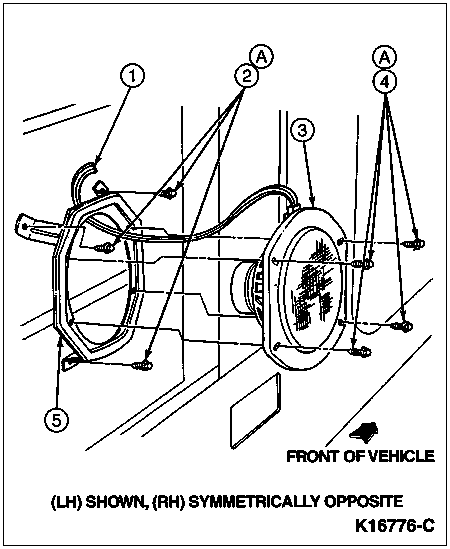

ItemPart NumberDescription
114A504Wiring Assembly
2381801-S2Screw
318808Radio Speaker
4N806222-S36Screw
518807Radio Speaker Mounting Bracket
A—Tighten to 2.0-2.5 Nm (17-22 Lb-In)
