Section 15-03: Speakers
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Radio Speakers, Rear, F-150, F-250, F-350, F-Super Duty

Removal

  1. NOTE: For SuperCab vehicles, the speaker trim cover must be removed to gain access to the four speaker screws.

    Remove four speaker screws and body side trim panel grille (Regular Cab and Crew Cab vehicles).

  1. Remove the radio speaker (18808) and radio speaker grille (18978), and disconnect the wiring connector at the rear of the radio speaker.



Installation

  1. Connect the wiring connector at the rear of the radio speaker. Install the radio speaker and radio speaker grille.

  1. Install the four speaker screws and body side trim panel grille (regulator cab and crew cab vehicles).

  1. Tighten the speaker screws to 2.0-2.5 Nm (17-22 lb-in).

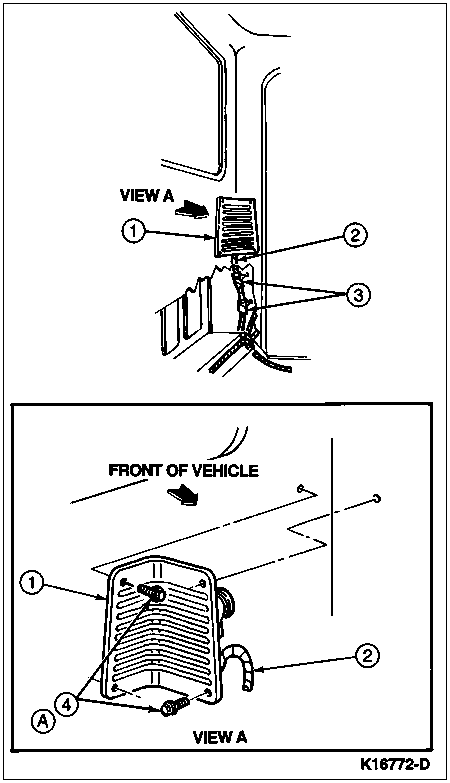

    Radio Speaker, Rear, F-150, F-250, F-350, Regular Cab and Crew Cab





    ItemPart NumberDescription
    118978Radio Speaker Grille
    214A504Wiring Assembly
    3—Locator (Part of 14A504)
    4N803247-S58Screw
    A—Tighten to 2.0-2.5 Nm (17-22 Lb-In)

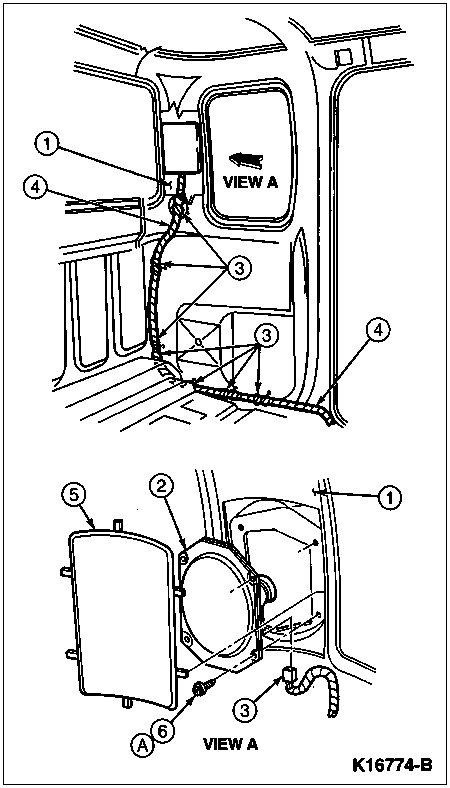

    Radio Speaker, Rear, F-150, F-250, F-350, SuperCab





    ItemPart NumberDescription
    131011Trim Panel
    218808Radio Speaker
    3—Locator (Part of 14A504)
    414A504Wiring Assembly
    518978Radio Speaker Grille
    6N806222-S36Screw
    A—Tighten to 2.0-2.5 Nm (17-22 Lb-In)
