Section 15-01: Radio, Tape Chassis and Digital Audio Compact Disc Player
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Radio Frequency Interference Suppression Equipment

The radio suppression equipment used on the different vehicles is shown in the following illustrations. When replacing any radio suppression equipment components, be sure that a good contact is made at all attachments. Remove any paint or dirt from between a condenser and its ground. Tighten all nuts and bolts securely.

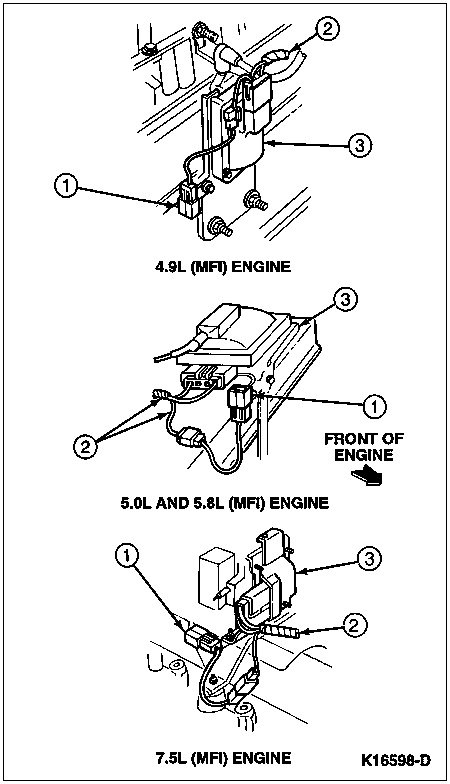

Capacitor Installation





ItemPart NumberDescription
118801Radio Ignition Interference Capacitor
29D930Fuel Charging Wiring
312029Ignition Coil

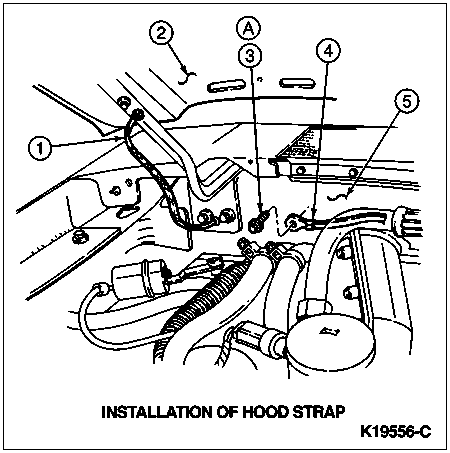

Radio Frequency Interference Suppression Bond Assembly, Dash Panel





ItemPart NumberDescription
118870Radio Receiver Hood Bonding Strap
216612Hood
3N801846-S36MGScrew
419A095Radio Frequency Interference Suppression Bond
501610Dash Panel
A—Tighten to 7-9 Nm (62-80 Lb-In)

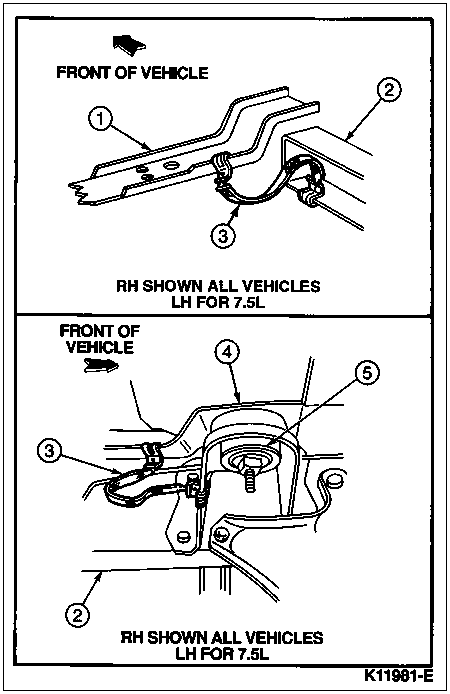

Radio Frequency Interference Suppression Bond Assembly





ItemPart NumberDescription
116138Radiator Support
25005Frame
319A095Radio Frequency Interference Suppression Bond
411135Front Floor Pan
500155Body Bolt Absorber

NOTE: Use a rubber mallet to install radio frequency interference suppression bond spring clips, or damage to the spring clips may occur.

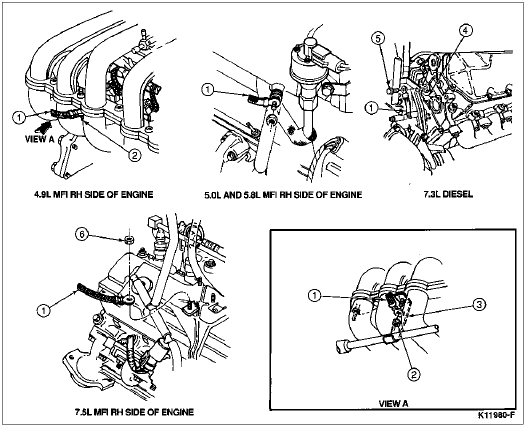

Radio Frequency Interference Suppression Equipment, Engine-Mounted





ItemPart NumberDescription
119A095Radio Frequency Interference Suppression Bond
245338-S36Nut
39H308Idle Air Control Valve Inlet Tube
46049Cylinder Head , RH Rear
5N605799-S36Bolt
6—Nut
