Section 14-01: Battery
1996 F-150, F-250, F-350, F-Super Duty and Bronco Workshop Manual
REMOVAL AND INSTALLATION

Battery Tray

Removal

  1. Remove battery (10655) from vehicle. Refer to Battery in the Removal and Installation portion of this section.

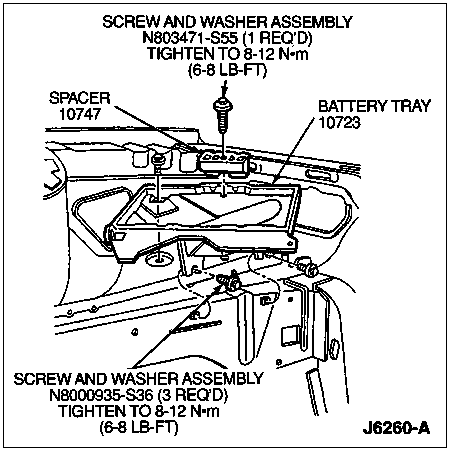

  1. Remove retaining bolts, screws and washers from battery tray.

  1. Remove battery tray from vehicle.

Installation

  1. Position battery tray to front fender apron (16054) in engine compartment.

  1. Install retaining bolts, screws and washers. Tighten each to 8-12 Nm (6-8 lb-ft).

  1. Install battery. Refer to Battery in the Removal and Installation portion of this section.

  1. Tighten battery hold down clamp (10718) bolt to 7-10 Nm (62-89 lb-in).
