Section 13-01: Instrument Cluster, Conventional | 1996 F-150, F-250, F-350, Bronco, F-Super Duty Motorhome Chassis Workshop Manual |
Removal
Remove the instrument cluster (10849) from the instrument panel (04320).

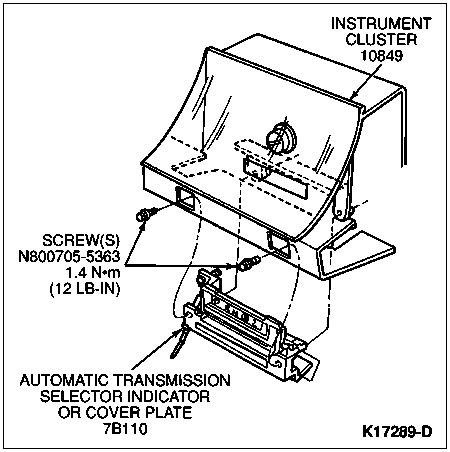

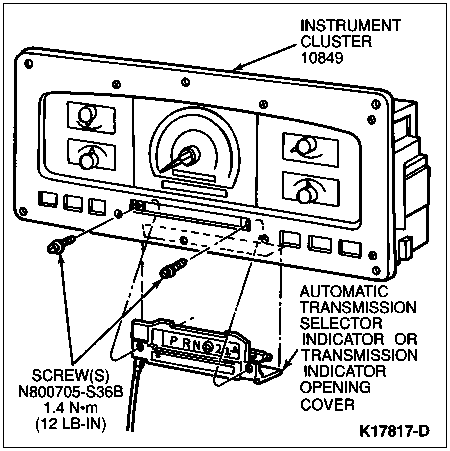

Remove two screws attaching the automatic transmission selector indicator to the instrument cluster.
Remove the automatic transmission range indicator by sliding it out downward from the bottom of the instrument cluster.
Installation
Follow removal procedures in reverse order. Refer to Section 11-04 for automatic transmission selector indicator adjustment.
