Section 12-02: Heating and Defrosting
1996 F-150, F-250, F-350, F-Super Duty and Bronco, F-Super Duty Motorhome Chassis Workshop Manual
REMOVAL AND INSTALLATION

Side Window Demister and Hose

Removal

  1. Remove the instrument panel (04320). Refer to Section 01-12.

  1. Remove two nuts attaching the A/C side window demister and hose (19E630) and one nut and one spring nut attaching the A/C side window demister and hose nozzles to the instrument panel. These nozzles are located in opposite corners of the instrument panel.

  1. Disconnect the flexible hoses that slide over the input end of each nozzle.

  1. Remove three push screws that attach the A/C demister hose connector (19E680) to the structural duct assembly. Disconnect the flexible hoses that slide over the input end of each nozzle.



Installation

  1. To install nozzles, hoses, and/or connector, install two attaching nuts to the A/C side window demister and hose and one nut to the A/C side window demister and hose, attach three push screws through the A/C demister hose connector into the structural duct. Then, slide the demister hoses over their attaching locations.

  1. Install instrument panel. Refer to Section 01-12.

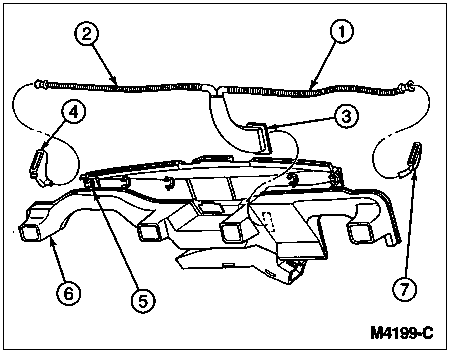

    Demister Nozzle and Hose Assembly Installation





    ItemPart NumberDescription
    119E658Right Demister Hose
    219E659Left Demister Hose
    319E680Demister Hose Connector
    419E657Left Demister Nozzle
    519B632Demister Hose Support Clip (Part of 19E727)
    6—Defroster Outlets, Instrument Panel Ducts, and Floor Ducts
    (Part of 19E727)
    719E629Right Demister Nozzle
