Section 11-05: Steering Column Switches | 1996 F-150, F-250, F-350, F-Super Duty, F-Super Duty Motorhome and Bronco Workshop Manual |
The ignition switch (11572) has blade-type terminals that engage with one ignition key warning switch terminal and wire. The ignition key warning switch terminal and wire is secured to the ignition switch by integral locking fingers.

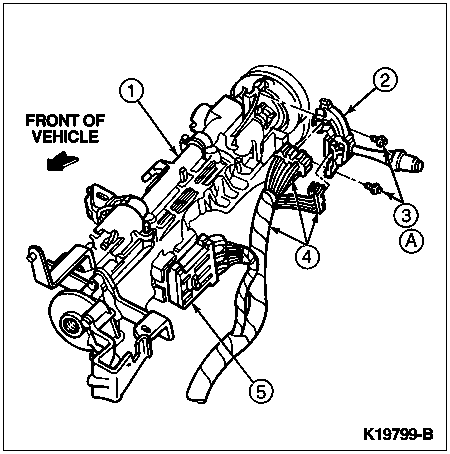

| Item | Part Number | Description |
|---|---|---|
| 1 | 3514 | Steering Column Tube |
| 2 | 13K359 | Multi-Function Switch |
| 3 | 390345-S36 | Screw |
| 4 | — | Connector (Part of Main Wiring Harness 14401) |
| 5 | — | Connector (Part of Main Wiring Harness 14401) |
| A | — | Tighten to 2-3 Nm (18-27 Lb-In) |
