Section 11-04: Steering Column
1996 F-150, F-250, F-350, Bronco, F-Super Duty Chassis Cab and Motorhome Chassis Vehicles Workshop Manual
ADJUSTMENTS

Transmission Range Indicator

Use the following procedure to adjust the automatic transmission indicator flag.

  1. NOTE: The lower steering column shroud (3530) must be removed.

    Rotate shift control selector lever clockwise until it bottoms out in first gear.

  1. Rotate shift control selector lever counterclockwise three detents (overdrive position).

  1. Hang a 3-lb. weight on the shift control selector lever.

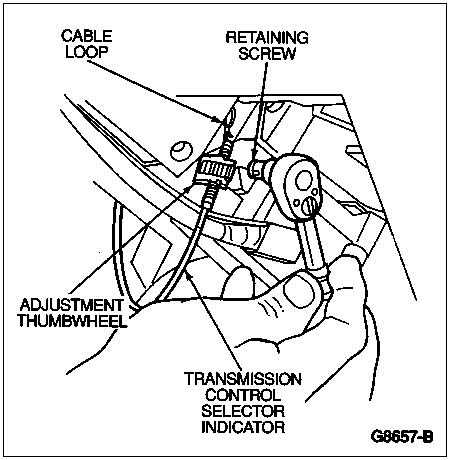

  1. Center pointer in the middle of D if equipped with C6 transmission (7003), or (D) if equipped with E4ODtransmission, by rotating the thumbwheel located on right-hand side of steering column actuator housing.



E40D Transmission Selector






C6 Transmission Selector
