Steering Pump, Power—5.0L, 5.8L, 7.5L, 7.3 Diesel

Removal

1. Remove power steering return hoses (3A713) at the pump, and drain fluid.

2. On F-Super Duty only, also remove power steering return line hose (3A005) at the pump, and drain fluid.

3. Remove the power steering pressure hose (3A719) by unscrewing the connector from the pump.

4. Remove drive belt (8620).

5. Remove the power steering pump pulley (3A733).

6. Remove power steering attaching bolts and remove the power steering pump (3A674).

Installation

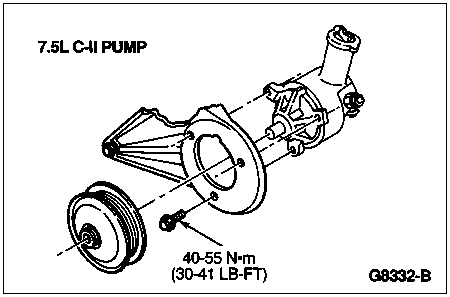

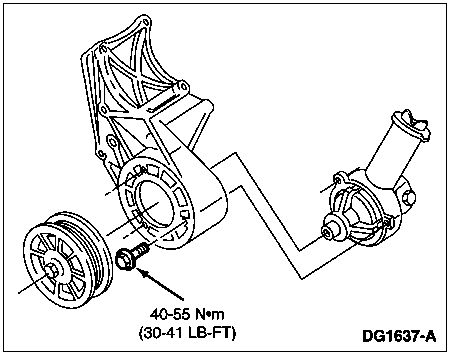

1. Position the power steering pump and install and tighten all attaching bolts. Refer to illustrations below for bolt torque specifications.

2. Install the power steering pump pulley.

3. Install drive belt.

4. Install the pressure hose tube nut into the pump outlet fitting and tighten to 34-54 Nm (25-40 lb-ft).

5. Connect power steering return hoses and power steering return line hose. Reposition the clamps.

6. Fill the power steering oil reservoir (3A697) with Premium Power Steering Fluid E4AZ-19582-C or E6AZ-19582-AA or equivalent meeting Ford specification ESW-M2C33-F. Start the engine and turn the steering wheel (3600) from left to right without hitting the stops to remove air from the system.

7. Check for leaks and recheck the fluid level. Add fluid if necessary to proper level as specified in Section 11-00 in this manual.

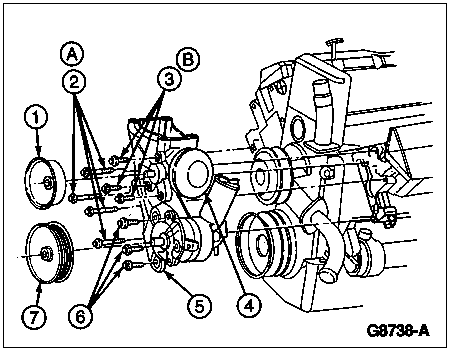

   7.3L Diesel C-II Pump







   Item	Part Number	Description
   1	2L487	Brake Vacuum Pump Pulley
   2	N605790-S2	Bolt
   3	N606068-S60	Bolt
   4	2A451	Vacuum Pump
   5	19E708	Accessory Mounting Bracket
   6	N800199-S8	Bolt
   7	3A733	Power Steering Pump Pulley
   A	—	Tighten to 22-32 Nm (16-24 Lb-Ft)
   B	—	Tighten to 40-55 Nm (30-41 Lb-Ft)



   Power Steering Pump Installation, F-Super Duty Chassis Cab







   Item	Part Number	Description
   1	95873	Strap
   2	3A717	Power Steering Right Turn Pressure Hose
   3	3A005	Power Steering Return Line Hose
   4	3A714	Power Steering Left Turn Pressure Hose
   5	2B559	Hydro-Boost Assembly
   6	3A717	Power Steering Right Turn Pressure Hose
   7	19E708	FEAD Bracket
   8	3C750	Clamp
   9	3A713	Power Steering Return Hose
   10	3A714	Power Steering Left Turn Pressure Hose
   11	3504	Steering Gear
   12	6007	Engine
   13	3A674	Power Steering Pump
   14	40949	Screw
   A	—	Tighten to 15-22 Nm (11-16 Lb-Ft)
