Accelerator Cable Bracket

Removal

1. Remove the accelerator control splash shield (9E766), if equipped.

2. Remove the accelerator cable (9A758) from the accelerator cable bracket (9723).

3. Remove the kickdown control shaft rod (7A187) from the accelerator cable bracket, if equipped.

4. Remove the accelerator shaft bracket holding screws and remove the accelerator cable bracket from the intake manifold cylinder head.

Installation

1. Follow removal procedures in reverse order. Refer to the appropriate illustration for screw tightening specifications.

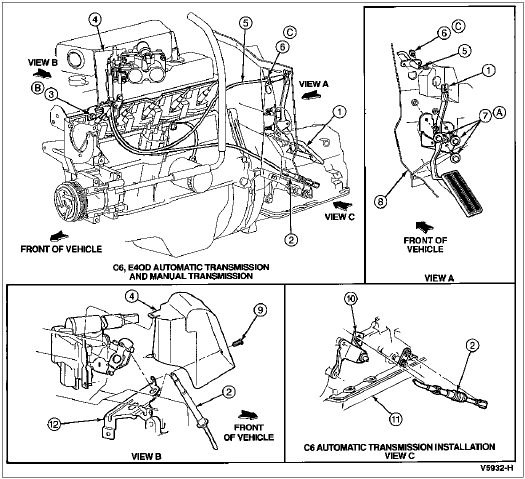

   Accelerator Cable and Kickdown Control Shaft Rod, F-150, F-250, F-350 with 4.9L SFI Engine







   Item	Part Number	Description
   1	9725	Accelerator Pedal and Shaft
   2	7A187	Kickdown Control Shaft Rod
   3	56538-S301	Bolt
   4	9E766	Accelerator Control Splash Shield
   5	9A758	Accelerator Cable
   6	N610959-S2	Screw
   7	N801921-S2	Screw and Washer
   8	04320	Instrument Panel
   9	N804527-S	Pushpin
   10	7C431	Gearshift Inner Bracket
   11	7003	C6 Automatic Transmission
   12	9723	Accelerator Cable Bracket
   A	—	Tighten to 21-29 Nm (16-21 Lb-Ft)
   B	—	Tighten to 26-34 Nm (20-25 Lb-Ft)
   C	—	Tighten to 2-3 Nm (18-26 Lb-In)

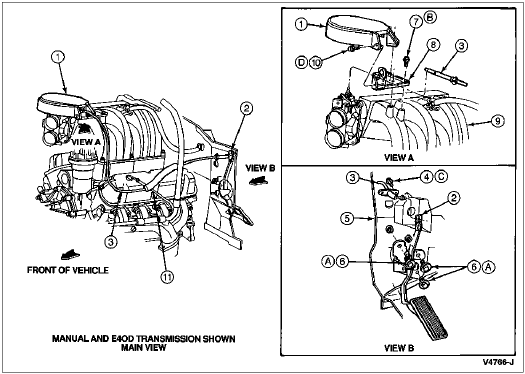

   Accelerator Cable, F-150, F-250, F-350 with 5.0L MFI and 5.8L MFI Engines







   Item	Part Number	Description
   1	9E766	Accelerator Control Splash Shield
   2	9725	Accelerator Pedal and Shaft
   3	9A758	Accelerator Cable
   4	N610959-S2	Screw
   5	04320	Instrument Panel
   6	N801921-S2	Screw and Washer
   7	56719-S2	Bolt
   8	9723	Accelerator Cable Bracket
   9	9424	Intake Manifold (Upper)
   10	N802826-S55M	Screw
   11	6750	Oil Level Indicator Tube
   A	—	Tighten to 21-29 Nm (16-21 Lb-Ft)
   B	—	Tighten to 21-27 Nm (16-19 Lb-Ft)
   C	—	Tighten to 2-3 Nm (18-26 Lb-In)
   D	—	Tighten to 5-9 Nm (45-79 Lb-In)

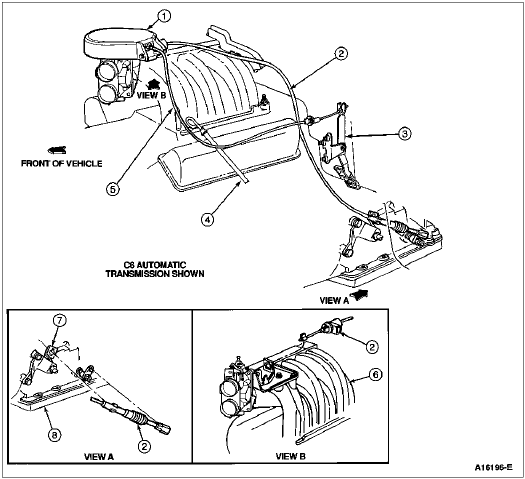

   Accelerator Cable and Kickdown Control Cable, F-150, F-250, F-350 and Bronco with 5.0L MFI and 5.8L MFI Engines







   Item	Part Number	Description
   1	9E766	Accelerator Control Splash Shield
   2	7A185	Kickdown Control Cable
   3	9725	Accelerator Pedal and Shaft
   4	6754	Oil Level Indicator Tube
   5	9A758	Accelerator Cable
   6	9424	Intake Manifold (Upper)
   7	7C431	Gearshift Inner Bracket
   8	7003	Transmission (Automatic)

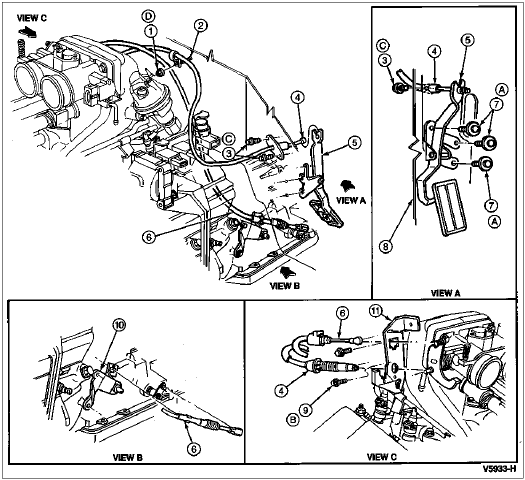

   Accelerator Cable and Kickdown Control Shaft Rod, F-250 HD, F-350, F-Super Duty with 7.5L MFI Engine







   Item	Part Number	Description
   1	N621906-S2	Nut and Washer
   2	N802989-S	Stud, Weld
   3	N610959-S2	Screw
   4	9A758	Accelerator Cable
   5	9725	Accelerator Pedal and Shaft
   6	7A187	Kickdown Control Shaft Rod
   7	N801921-S2	Screw and Washer
   8	04320	Instrument Panel
   9	57632-S2	Screw and Washer
   10	7C431	Gearshift Inner Bracket
   11	9723	Accelerator Cable Bracket
   A	—	Tighten to 21-29 Nm (16-21 Lb-Ft)
   B	—	Tighten to 21-27 Nm (16-19 Lb-Ft)
   C	—	Tighten to 2-3 Nm (18-26 Lb-In)
   D	—	Tighten to 4-5 Nm (36-44 Lb-In)

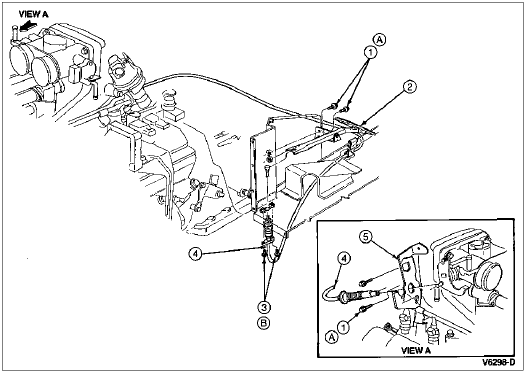

   Accelerator Cable, F-Super Duty Motorhome Chassis Vehicles with 7.5L MFI Engine







   Item	Part Number	Description
   1	N605786-S2	Bolt
   2	9725	Accelerator Pedal and Shaft
   3	N605890-S2	Screw
   4	9A758	Accelerator Cable
   5	9723	Accelerator Cable Bracket
   A	—	Tighten to 21-27 Nm (16-19 Lb-Ft)
   B	—	Tighten to 3-5 Nm (27-44 Lb-In)
