Section 10-01A: Fuel Tank, Filters, Tubes and Electric Fuel Pump, Gasoline Engines | 1996 F-150, F-250, F-350, F-Super Duty and Bronco with Gasoline Engines Workshop Manual |
The fuel pump removal and installation procedure for units equipped with plastic fuel tank sending unit locking retainer rings is the same for units equipped with metal fuel tank sending unit locking retainer rings. The fuel tank sending unit locking retainer ring on these units can be removed with a band-type oil filter wrench or equivalent by turning counterclockwise. When installing the fuel tank sending unit locking retainer ring, tighten ring to 54-75 Nm (40-55 lb-ft).

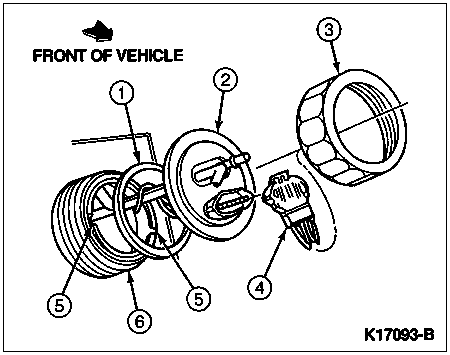

| Item | Part Number | Description |
|---|---|---|
| 1 | 9417 | Fuel Pump Mounting Gasket |
| 2 | 9H307 | Fuel Tank Sending Unit and Pump |
| 3 | 9A307 | Fuel Tank Sending Unit Locking Retainer Ring |
| 4 | 14405 or 14406 | Wiring Assembly |
| 5 | — | Locating Tabs (Part of 9H307 or 9275 Fuel Pump and Sending Unit) |
