Section 10-01A: Fuel Tank, Filters, Tubes and Electric Fuel Pump, Gasoline Engines | 1996 F-150, F-250, F-350, F-Super Duty and Bronco with Gasoline Engines Workshop Manual |
Refer to Removal and Installation, Fuel Tank (select appropriate configuration and tank location), in this section.

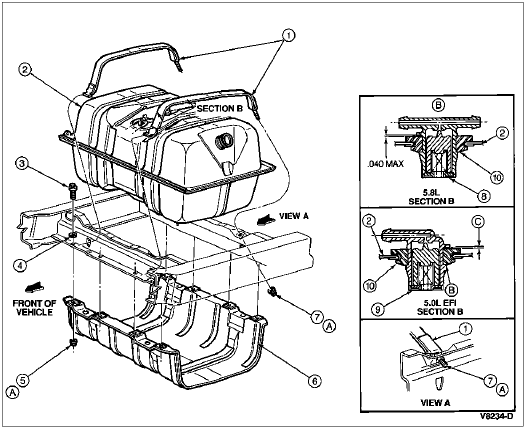

Aft-of-Axle Fuel Tank Installation, Bronco (4x4)
| Item | Part Number | Description |
|---|---|---|
| 1 | 9092 | Fuel Tank Support Strap |
| 2 | 9002 | Fuel Tank |
| 3 | N801380-S100 | Bolt |
| 4 | 382873-S2 | Washer |
| 5 | N620482-S2 | Nut |
| 6 | 9053 | Fuel Tank Support |
| 7 | 34976-S36 | Nut |
| 8 | 9B227 | Hose and Valve Assembly, Fuel Vapor Return — 5.8L Engine |
| 9 | 9C987 | Hose and Valve Assembly, Fuel Vapor Return — 5.0L Engine |
| 10 | 9B076 | Seal, Separator Fuel Vapor |
| A | — | Tighten to 34-46 Nm (25-34 Lb-Ft) |
| B | — | Valve Must Be Installed As Shown and Fully Seated |
| C | — | 1.0mm (.040 Inch) Maximum |
