Clutch Pedal

Removal

1. Disconnect clutch pedal retracting spring from clutch pedal (7519) and bracket.

2. Remove the nut that retains the clutch pedal to the clutch and brake pedal pivot shaft (7506).

3. Remove the clutch pedal.

4. If the brake pedal (2455) is to be removed, refer to Section 06-06.

Installation

1. Position clutch pedal on shaft.

2. Install and tighten nut to 68-92 Nm (50-68 lb-ft).

3. Remove old pivot shaft lever and replace with a new one. Refer to Clutch and Brake Pedal Pivot Shaft Lever in the Removal and Installation portion of this section.

4. NOTE: Spring installation is easier if clutch pedal lever assist spring (7534) is first compressed in a vise and retained in a compressed state with mechanics wire until in place. Once in place, cut mechanics wire and remove.

   Install clutch pedal lever assist spring. Make sure clutch pedal lever assist spring engages in clutch pedal and bracket slots.

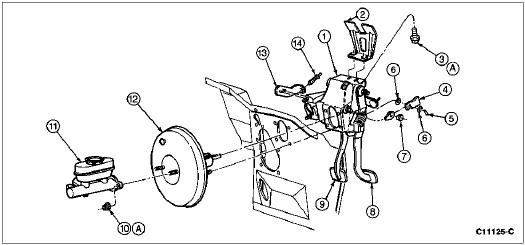

   Clutch Pedal Installation







   Item	Part Number	Description
   1	2450	Brake Pedal and Bracket Assembly
   2	01508	Pedal Support Bracket ("Y" Brace)
   3	56340-S2	Bolt, M8-1.25 x 16
   4	13480	Switch, Stoplight
   5	380699-S100	Pin, Self-Locking
   6	2B129	Spacer
   7	2A309	Bushing
   8	7519	Clutch Pedal
   9	2455	Brake Pedal
   10	382802-S2	Nut, 3/8-16 Hex Flange
   11	2140	Brake Master Cylinder
   12	2005	Power Brake Booster
   13	9C961	Bracket, Speed Control Dump Valve
   14	9C727	Valve, Speed Control Vacuum Dump
   A	—	Tighten to 21-29 Nm (15-21 Lb-Ft)
