Section 08-00: Clutch System, Service
1996 F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco Equipped with Manual Transmission Workshop Manual
REMOVAL AND INSTALLATION

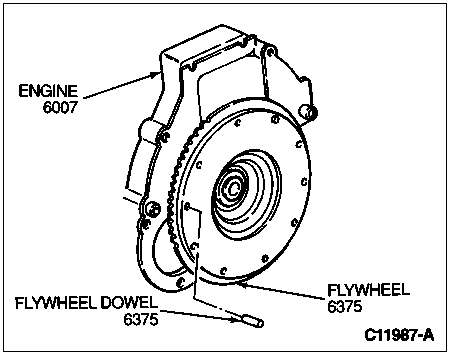

Dowels, Flywheel



Removal

  1. NOTE: Prior to dowel removal, remove the clutch pressure plate. Refer to Section 08-01.

    Remove dowels with a drift pin where the dowel is installed in a drilled hole and vise grip pliers where the dowel is installed in a blind hole.

  1.  CAUTION: Do not damage dowel hole or surface area around dowel during removal.

    Pull or drive dowels from their seats.



Installation

  1.  CAUTION: Do not damage surrounding surface areas.

    Drive dowels into place using a brass or plastic mallet. Drive the dowel squarely into place until fully seated.
