Section 07-07A: Transfer Case, Electronic Shift | 1996 F-150 4x4 Vehicles with Automatic Transmissions and All Bronco Vehicles Workshop Manual |

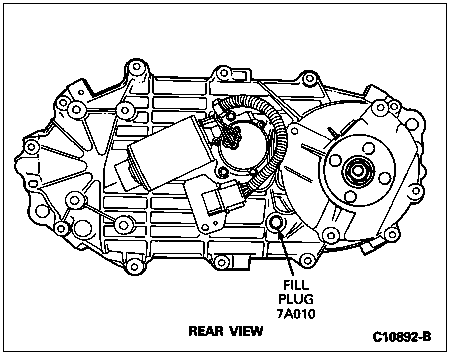

Remove the fill plug from the rear case (7005). Fluid level should be just below the fill plug hole. If the fluid level is below this level, fill with Motorcraft MERCON® automatic transmission fluid ATF XT-2-QDX or equivalent to the correct fill level. Reinstall the fill plug and tighten to 9-23 Nm (7-17 lb-ft).
