Section 07-07A: Transfer Case, Electronic Shift
1996 F-150 4x4 Vehicles with Automatic Transmissions and All Bronco Vehicles Workshop Manual
REMOVAL AND INSTALLATION

4x4 Shift Switch

Removal

  1. Remove the instrument panel as described in Section 01-12.

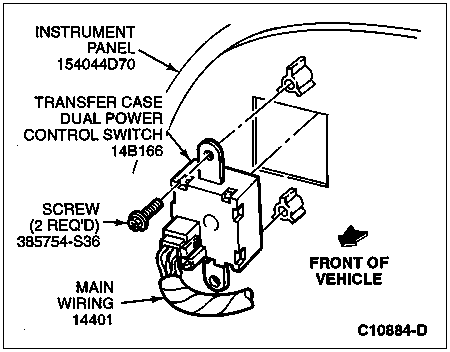

  1. Remove the switch mounting screw and remove the switch from the panel and disconnect the switch from the wiring.

Installation

  1. Position the switch in the panel and retain with mounting screw.

  1. Connect harness connector.

  1. Install the instrument panel assembly.
