Section 06-09A: Brake System, Anti-Lock, Rear
1996 F-150, F-250, F-350 Workshop Manual
REMOVAL AND INSTALLATION

Control Module, Anti-Lock Electronic

Removal

  1. Disconnect the wiring harness from the anti-lock electronic control module (2C018) by depressing the plastic tab on the connector and pulling the connector off.

  1. Remove the two screws that retain the anti-lock electronic control module to the instrument panel (04320). Remove the anti-lock electronic control module.



Installation

  1. Follow removal procedures in reverse order, followed by a system check for proper operation.

  1. Tighten screws to 2.1-2.9 Nm (19-25 lb-in).

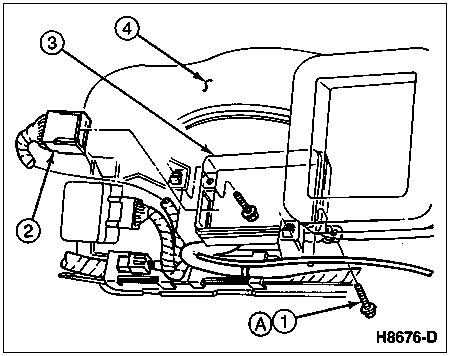

    Anti-Lock Electronic Control Module Location





    ItemPart NumberDescription
    1N803876-S36Screws
    2—Wiring Harness (Part of 14401)
    32C018Anti-Lock Electronic Control Module
    404320Instrument Panel
    A—Tighten to 2.1-2.9 Nm
    (19-25 Lb-In)
