Hydraulic Schematic
Section 06-09A: Brake System, Anti-Lock, Rear | 1996 F-150, F-250, F-350 Workshop Manual |
The fluid level indicator is an integral part of the brake master cylinder reservoir. It is serviced as a part of the brake master cylinder reservoir. It consists of a float containing a magnet and a reed switch. When the fluid in the brake master cylinder reservoir (2K478) gets to a predetermined level, the magnet actuates the reed switch, causing the red brake warning lamp to light. Loss of fluid from either the primary (front) or secondary (rear) system will cause this system to actuate.

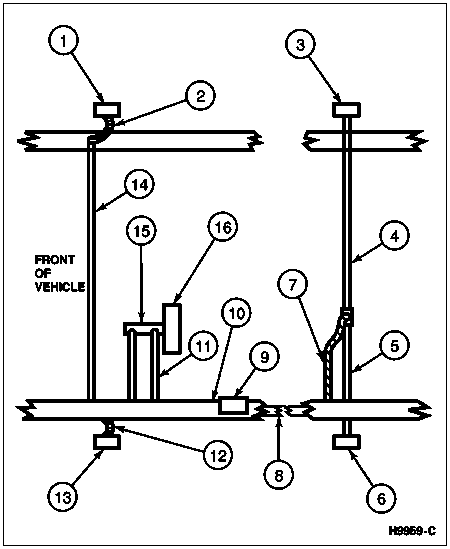

Hydraulic Schematic
| Item | Part Number | Description |
|---|---|---|
| 1 | 2B120 | Front Disc Brake Caliper (RH) |
| 2 | 2078 | Front Brake Hose (RH) |
| 3 | 2261 | Rear Wheel Cylinder(RH) |
| 4 | 2267 | Rear Brake Tube (RH) |
| 5 | 2268 | Rear Brake Tube (LH) |
| 6 | 2262 | Rear Wheel Cylinder (LH) |
| 7 | 2282 | Rear Brake Hose |
| 8 | 2C008 | RABS Valve Output Tube |
| 9 | 2B373 | RABS Valve |
| 10 | 2234 | RABS Valve Input Tube |
| 11 | 2264 | Front Brake Tube (LH) |
| 12 | 2078 | Front Brake Hose (LH) |
| 13 | 2B121 | Front Disc Brake Caliper (LH) |
| 14 | 2263 | Front Brake Tube (RH) |
| 15 | 2140 | Brake Master Cylinder |
