Section 06-06: Brake System, Hydraulic
1996 F-150, F-250, F-350, Bronco and F-Super Duty Workshop Manual
ADJUSTMENTS

Brake Pedal Linkage, F-Super Duty Motorhome Chassis

  1. Attach clevis, clevis pin and locking pin to brake pedal (2455).

  1. Hold brake pedal against rubber stop.

  1. Make sure jam nut is loose.

  1. Turn brake rod into clevis until lower hole lines up with pin on bellcrank.

  1. Slide brake rod and bushing onto pin of bellcrank and attach washer and spring clip.

  1. Tighten jam nut to 50-67 Nm (37-49 lb-ft).

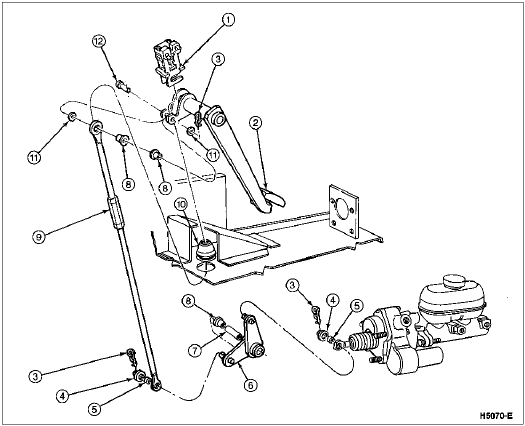

    Brake Pedal





    ItemPart NumberDescription
    113480Stoplight Switch
    22455Brake Pedal
    3380699-S100Self-Locking Pin
    444880-S2Flatwasher, 9/16-Inch
    52474Brake Master Cylinder Push Rod Bushing
    62B327Bellcrank
    72B362Bellcrank Spacer
    82474Brake Master Cylinder Push Rod Bushing
    92A525Bellcrank Rod
    102N060Brake Rod Seal Boot
    112B129Brake Master Cylinder Push Rod Spacer
    122462Brake Pedal Pin
