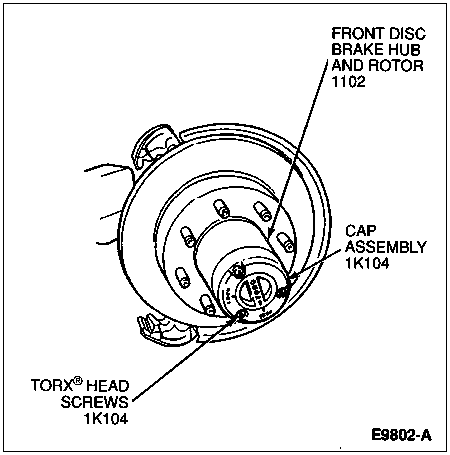

Separate cap assembly from hub body by removing the three Torx® head capscrews.
Section 05-03C: Wheel Hubs and Bearings, Front Wheels, 4-Wheel Drive | 1996 F-150, F-250, F-350, and Bronco Workshop Manual |

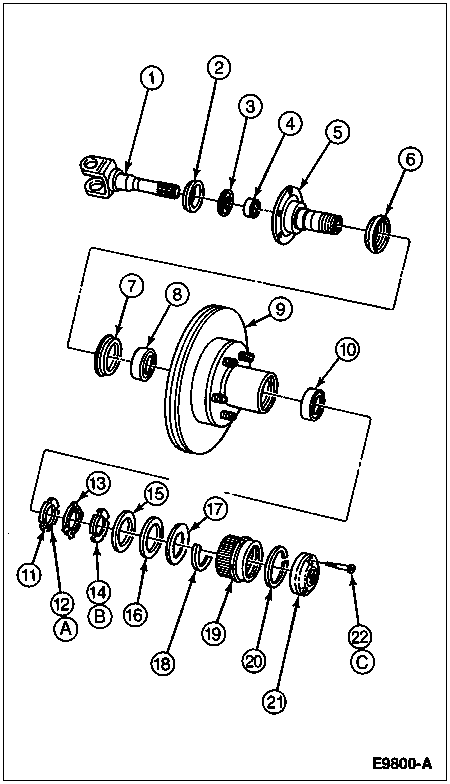

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A329 | Halfshaft |
| 2 | 3C132 (Axle) | Rolling Diaphragm Seal |
| 3 | 3299 | Integral Spacer Needle Bearing Seal |
| 4 | 3123 | Bearing, Caged Needle |
| 5 | 3105 | Front Wheel Spindle |
| 6 | 3254 | Spindle Rolling Diaphragm Seal |
| 7 | 1190 | Wheel Hub Grease Seal |
| 8 | 4221 | Inner Wheel Bearing (with Bearing Cup — 4222) |
| 9 | 1102 | Front Disc Brake Hub and Rotor |
| 10 | 4221 | Outer Wheel Bearing (with Bearing Cup — 4222) |
| 11 | — | Pin (Part of 1195) |
| 12 | 1195 | Inner Lock Nut |
| 13 | 1198 | Lockwasher |
| 14 | 1197 | Outer Lock Nut |
| 15 | — | Steel Thrust Washer (Part of 3B458) |
| 16 | — | Plastic Thrust Washer (Part of 3B458) |
| 17 | — | Splined Thrust Washer (Part of 3B458) |
| 18 | 3B457 | C-Ring |
| 19 | 1K105 | Hub Body |
| 20 | — | Lock Ring (Part of 1K106) |
| 21 | 1K104 | Cup |
| 22 | 1K104 | Capscrew |
| A | — | While Rotating Front Disc Brake Hub and Rotor, Tighten Inner Lock Nut to 68 Nm (50 Lb-Ft) to Seat Wheel Bearing. Back Nut Off 90 Degrees (1/4 Turn). |
| B | — | Tighten to 217-278 Nm (160-205 Lb-Ft) |
| C | — | Tighten to 4-6 Nm (35-53 Lb-In) |

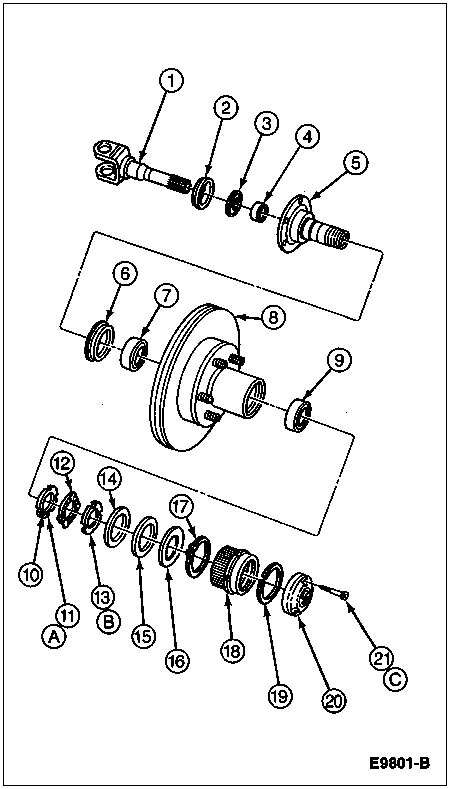

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A329 | Halfshaft |
| 2 | 3C132 | Rolling Diaphragm Seal (Axle) |
| 3 | 3299 | Integral Spacer Needle Bearing Seal |
| 4 | 3123 | Bearing, Caged Needle |
| 5 | 3105 | Front Wheel Spindle |
| 6 | 1190 | Wheel Hub Grease Seal |
| 7 | 4221 | Inner Wheel Bearing (with Bearing Cup — 4222) |
| 8 | 1102 | Front Disc Brake Hub and Rotor |
| 9 | 4221 | Outer Wheel Bearing (with Bearing Cup — 4222) |
| 10 | — | Pin (Part of 1195) |
| 11 | 1195 | Inner Lock Nut |
| 12 | 1198 | Lockwasher |
| 13 | 1197 | Outer Lock Nut |
| 14 | — | Steel Thrust Washer (Part of 3B458) |
| 15 | — | Plastic Thrust Washer (Part of 3B458) |
| 16 | — | Splined Thrust Washer (Part of 3B458) |
| 17 | 3B457 | Snap Ring |
| 18 | 1K105 | Hub Body |
| 19 | — | Lock Ring (Part of 1K106) |
| 20 | 1K104 | Cap |
| 21 | 1K104 | Capscrew |
| A | — | While Rotating Front Disc Brake Hub and Rotor, Tighten Inner Lock Nut to 68 Nm (50 Lb-Ft) to Seat Bearings. Back Nut Off 90 Degrees (1/4 Turn). |
| B | — | Tighten to 217-278 Nm (160-205 Lb-Ft) |
| C | — | Tighten to 4-6 Nm (35-53 Lb-In) |
Removal
Separate cap assembly from hub body by removing the three Torx® head capscrews.
Remove the lock ring seated in the groove of the front disc brake hub and rotor (1102).

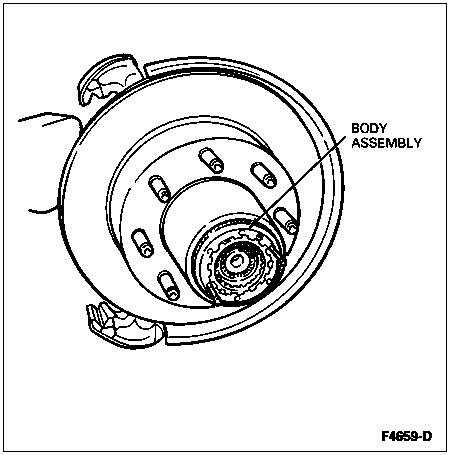

Remove the body assembly from the front disc brake hub and rotor. If the body is difficult to remove, install two capscrews and pull the body assembly out of the front disc brake hub and rotor.
Installation
Follow removal procedures in reverse order. Tighten three Torx® head capscrews to 4-6 Nm (35-53 lb-in).
Do not pack the hublock body assembly or cap with grease. Excessive grease can cause excessive dialing effort and hub failure.
