Section 05-02H: Differential, Traction-Lok Limited Slip, 8.8-Inch Ring Gear
1996 F-150 and Bronco Workshop Manual
ADJUSTMENTS

Bench Torque Test

SPECIAL SERVICE TOOL(S) REQUIRED
DescriptionTool Number
Traction-Lok® Torque ToolT66L-4204-A

A bench torque test must be made if the differential case (4204) has been removed from the rear axle housing (4010) and adjustments have been made.

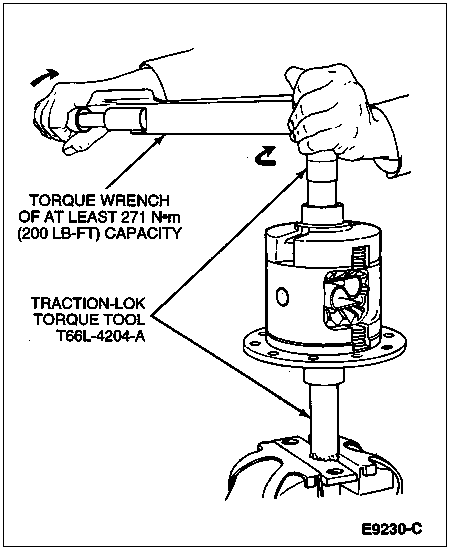

With Traction Lok® Torque Tool T66L-4204-A in the differential case, check the torque required to rotate one differential side gear (4236) while the other is held stationary.

The initial break-away torque, if original clutch plates are used, should be at least 27 Nm (20 lb-ft). The rotating torque required to keep the differential side gear turning with new clutch plates may fluctuate.
