Section 05-02G: Axle, Integral Carrier, 8.8-Inch Ring Gear
1996 F-150 and Bronco Workshop Manual
DESCRIPTION AND OPERATION

Operation

The rear axle drive pinion receives its power from the engine (6007) through the transmission (7003) and driveshaft (4602). The pinion gear rotates the differential case (4204) through engagement with the ring gear, which is bolted to the differential case.

Inside the differential case, two differential pinion gears (4215) are mounted on the differential pinion shaft (4211), which is pinned with the differential pinion shaft lock pin (4241)) to the differential case. These differential pinion gears are engaged with the differential side gears (4236), to which the axle shafts (4234) are splined. Therefore, as the differential case turns, it rotates the axle shafts and rear wheels. When conditions require one wheel and axle shaft to rotate faster than the other, the faster turning differential side gear causes the differential pinion gear to roll on the slower turning differential side gear to allow differential action between the two axle shafts.

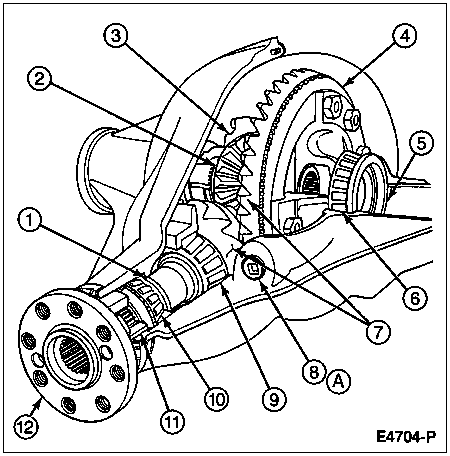

Integral Carrier, Rear Axle Assembly

ItemPart NumberDescription
14662Differential Drive Pinion Collapsible Spacer
24236Differential Side Gear
34204Differential Case
44B409Anti-Lock Speed Sensor Ring
54067Differential Bearing Shim
64221Differential Bearing
74209Differential Ring Gear and Pinion
8390943-S100Fill Plug with Magnet
94630Differential Pinion Bearing
104621Differential Pinion Bearing
114676Rear Axle Drive Pinion Seal
124851Rear Axle Universal Joint Flange (Circular)
A—Tighten to 20-40 Nm
(15-30 Lb-Ft)

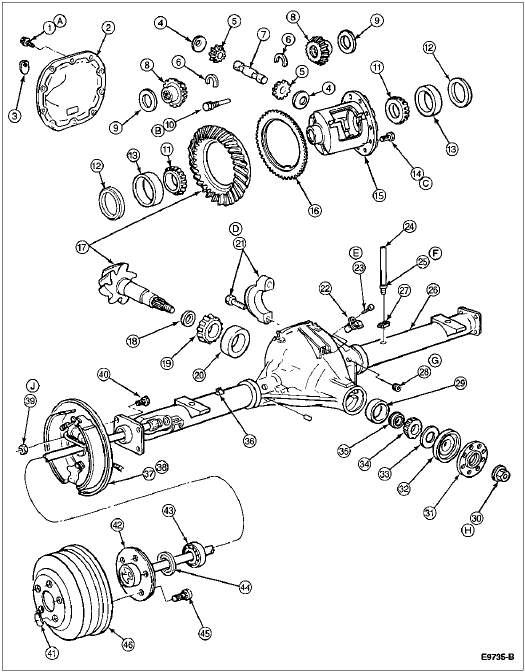

Integral Carrier, Disassembled View

ItemPart NumberDescription
14346Axle Housing Cover Bolt
24033Axle Housing Cover
3—Rear Axle Identification Tag
(Part of 4001)
44230Differential Pinion Thrust Washer
54215Differential Pinion Gear
64N237U-Washer
74211Differential Pinion Shaft
84236Differential Side Gear
94228Differential Side Gear Thrust Washer
104241Differential Pinion Shaft Lock Pin
114221Differential Bearing
124067Differential Bearing Shim
134222Differential Bearing Cup
144216Ring Gear Bolt
154204Differential Case
164B409Anti-Lock Speed Sensor Ring
174209Differential Ring Gear and Pinion
184663Drive Pinion Bearing Adjustment Shim
194630Differential Pinion Bearing
204628Rear Axle Pinion Bearing Cup
21—Bearing Cap and Bolt
(Part of 4010)
222C190Rear Brake Anti-Lock Sensor
23390356Bolt
244A001Rear Axle Housing Vent Hose, F-150 and Bronco
254022Rear Axle Housing Vent
264010Rear Axle Housing
27—Brake Hose Junction Block
(Part of 2282)
28390943-S100Filler Plug
294616Differential Drive Pinion Bearing Cup
30389546-S100Pinion Nut
314851Rear Axle Universal Joint Flange
324676Rear Axle Drive Pinion Seal
334670Rear Axle Drive Pinion Shaft Oil Slinger
344621Differential Pinion Bearing
354662Differential Drive Pinion Collapsible Spacer
362251Rear Axle Brake Line Clip
372209Brake Assembly (RH)
382210Brake Assembly (LH)
3934449-S312Brake Backing Plate Nut
402248Bolt
412092Spring Push-On Nut
424234Axle Shaft
431225Rear Wheel Bearing
441177Inner Wheel Bearing Oil Seal
451107Lug Bolt
461126Brake Drum
A—Tighten to 38-52 Nm
(28-38 Lb-Ft)
B—Apply Threadlock® and Sealer EOAZ-19554-AA or Equivalent Meeting Ford Specification WSK-M2G315-A5. Tighten to 20-40 Nm (15-30 Lb-Ft)
C—Apply Threadlock® and Sealer EOAZ-19554-AA or Equivalent Meeting Ford Specification WSK-M2G315-A5. Tighten to 95-115 Nm (70-85 Lb-Ft)
D—Tighten to 95-115 Nm
(70-85 Lb-Ft)
E—Tighten to 34-40 Nm
(25-30 Lb-Ft)
F—Tighten to 11-25 Nm
(8-18 Lb-Ft)
G—Tighten to 20-40 Nm
(15-30 Lb-Ft)
H—Pinion Bearing Preload for Used Bearings; 0.9-1.5 Nm (8-14 Lb-In); for New Bearings 1.8-3.3 Nm
(16-29 Lb-In)
J—Tighten to 28-54 Nm
(20-40 Lb-Ft)
