WARNING: IF FASTENERS OF A LOWER GRADE OR CLASS ARE TIGHTENED TO THE REQUIREMENTS OF A HIGHER GRADE OR CLASS FASTENER, IT MAY RESULT IN COMPONENT FAILURE (E.G., GRADE 5 FASTENER TIGHTENED TO THE REQUIREMENTS OF A GRADE 8 FASTENER).Section 05-02D: Axle, Rear, Dana | 1996 F-Super Duty Workshop Manual |
| Ford Specification | Approximate Capacities | ||
|---|---|---|---|
| U.S. Pts. | Imperial Pts. | Liters | |
| WSP-M2C197-A | 8.5 | 7.0 | 4.0 |
Note: Use additive friction modifier WSP-M2C196-A or equivalent meeting Ford specification WSP-M2196-A for complete refill of Dana limited slip rear axles.
| Description | Specification | Description | Specification |
|---|---|---|---|
| Backlash Between Differential Ring Gear and Pinion | 0.13-0.20mm (0.005-0.008 Inch) | Pinion Bearing Preload (with New Bearings) | 2.26-4.53 Nm (20-40 Lb-In) |
| Backlash Maximum Variation Between Checkpoints | 0.05mm (0.002 Inch) | Total (Pinion Plus Differential) Preload with New Bearings | Add 0.68-1 Nm (6-9 Lb-In), Depending on Ratio, to Pinion Preload. |
WARNING: IF FASTENERS OF A LOWER GRADE OR CLASS ARE TIGHTENED TO THE REQUIREMENTS OF A HIGHER GRADE OR CLASS FASTENER, IT MAY RESULT IN COMPONENT FAILURE (E.G., GRADE 5 FASTENER TIGHTENED TO THE REQUIREMENTS OF A GRADE 8 FASTENER).

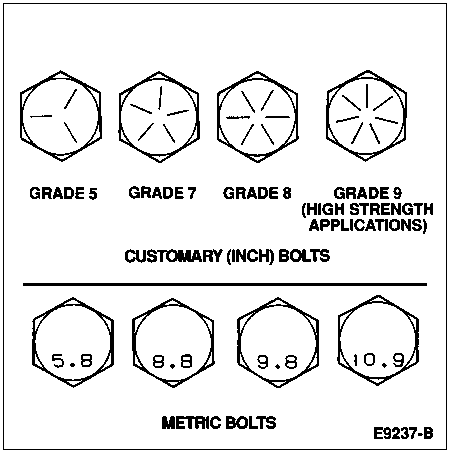

Inch grade fasteners can be identified by the radial lines embossed upon the head of the fastener and will correspond to the fastener strength by two lines less than actual grade (i.e., grade 8 fastener will display 6 radial lines on the head).
Metric fastener strength can be identified with the class identification embossed on the head of each fastener. Increasing numbers represent increasing strength.
| Description | Nm | Lb-Ft |
|---|---|---|
| Pinion Shaft Nut | 597-677 | 440-500 |
| Differential Bearing Cap Bolts | 95-122 | 70-90 |
| Ring Gear Attaching Bolts | 272-325 | 200-240 |
| U-Joint Bolts | 272-368 | 200-270 |
| Cover to Housing Bolts | 41-54 | 30-40 |
| Shock Absorber | 300-405 | 220-300 |
| Stabilizer Bar Bolts | 37-50 | 27-37 |
