Rear Axle, Dana Model 80 Full-Floating
Full-Floating Axle, Model 80
Section 05-02D: Axle, Rear, Dana | 1996 F-Super Duty Workshop Manual |

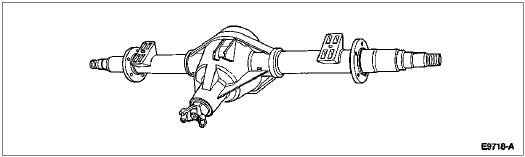

Model 80 rear axles (4001) are equipped with full-floating axle shafts (4234), meaning loads are supported by the axle housing. These rear axles have an integral-type axle housing, hypoid gear design with the centerline of the pinion set below the centerline of the ring gear. The axle shaft is retained by bolts attached to the rear hub (1109). The rear hub rides on two bearings at the outboard end. The axle housing consists of a cast center section with two steel tubes. A stamped axle housing cover (4033) uses silicone rubber or equivalent as a gasket. A metal tag, attached to axle housing by two cover bolts, is stamped with the gear ratio and part numbers.
Rear Axle, Dana Model 80 Full-Floating
Full-Floating Axle, Model 80

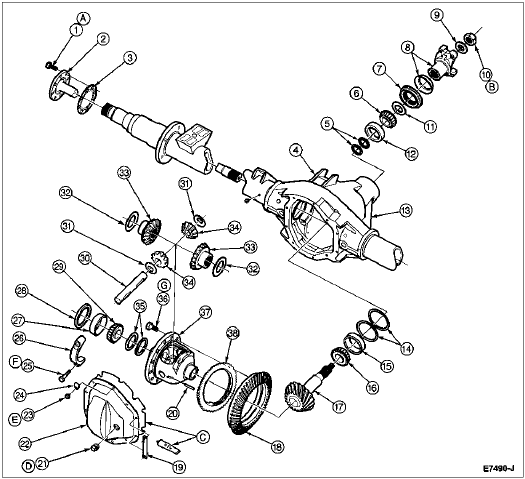

| Item | Part Number | Description |
|---|---|---|
| 1 | N808133 | Bolt |
| 2 | 4234 | Axle Shaft |
| 3 | 1001 | Rear Wheel Gasket |
| 4 | 2C190 | Rear Brake Anti-Lock Sensor |
| 5 | 4067 | Differential Bearing Shim |
| 6 | 4630 | Differential Pinion Bearing, Outer |
| 7 | 4676 | Rear Axle Drive Pinion Seal |
| 8 | 4851 | Rear Axle Universal Joint Flange |
| 9 | 4239 | Washer |
| 10 | 354845 | Lock Nut |
| 11 | 4667 | Thrust Washer |
| 12 | 4616 | Differential Drive Pinion Bearing Cup, Outer |
| 13 | 4010 | Rear Axle Housing |
| 14 | 4109 | Drive Pinion Position Shim |
| 15 | 4628 | Rear Axle Pinion Bearing Cup |
| 16 | 4630 | Differential Pinion Bearing |
| 17 | 4209 | Pinion (Matched Set) |
| 18 | 4209 | Ring Gear (Matched Set) |
| 19 | — | Identification Tag (Part of 4002) |
| 20 | 4241 | Differential Pinion Shaft Lock Pin |
| 21 | 353051 | Fill Plug |
| 22 | 4033 | Axle Housing Cover |
| 23 | 4346 | Screw, Cover |
| 24 | — | Brake Line Clip (Part of 4033) |
| 25 | 355765-S | Bearing Cap Bolt |
| 26 | — | Bearing Cap (Part of 4010) |
| 27 | 4222 | Differential Bearing Cup |
| 28 | 4K067 | Outboard Spacer |
| 29 | 4221 | Differential Bearing |
| 30 | 4211 | Differential Pinion Shaft |
| 31 | 4230 | Differential Pinion Thrust Washer |
| 32 | 4228 | Differential Side Gear Thrust Washer |
| 33 | 4236 | Differential Side Gear |
| 34 | 4215 | Differential Pinion Gear |
| 35 | 4067 | Differential Bearing Shim (Preload/Backlash) |
| 36 | 4558 | Rear Axle Differential Ring Gear Bolt |
| 37 | 4204 | Differential Case |
| 38 | 4B409 | Anti-Lock Speed Sensor Ring |
| A | — | Tighten to 113-153 Nm (83-113 Lb-Ft) |
| B | — | Tighten to 597-677 Nm (440-500 Lb-Ft) |
| C | — | Apply Silicone Rubber ETZ-19562-A or Equivalent Meeting Ford Specification ESL-M4G273 Rather Than a Gasket. |
| D | — | Tighten to 27-47 Nm (20-30 Lb-Ft) |
| E | — | Tighten to 41-54 Nm (30-40 Lb-Ft) |
| F | — | Tighten to 95-122 Nm (70-90 Lb-Ft) |
| G | — | Tighten to 272-325 Nm (200-240 Lb-Ft) |
