Section 05-02B: Wheel Hubs and Bearings, Rear, Ford Full-Floating Axle | 1996 F-250 HD and F-350 Vehicles Workshop Manual |
The full-floating rear axle features brake drums that are mounted outboard of the rear hub (1109). Therefore, when brake inspection or replacement is required the rear hub need not be removed.
The rear hub is supported or floats on the axle spindle on two opposed tapered roller bearings. It is retained on the spindle by a ratcheting nut that is tabbed to a slot on the spindle.
NOTE: If, for any reason, the rear hub is removed from the spindle, the old hub seal must be removed and a new hub seal installed.

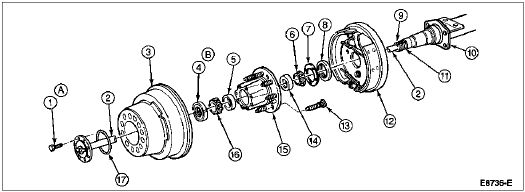

Wheel Hub and Bearing Assembly, Ford Full-Floating Axle
| Item | Part Number | Description |
|---|---|---|
| 1 | 46053-S100 | Bolt |
| 2 | 4234 | Axle Shaft (LH) |
| 3 | 1126 | Brake Drum |
| 4 | 1A124 | Hub Nut (Right-Hand Thread for Right Axle Tube, Left-Hand Thread for Left Axle Tube) |
| 5 | 1239 | Bearing Cup (Rear Wheel Outer) |
| 6 | 1244 | Rear Wheel Bearing Inner Cone and Roller |
| 7 | 1250 | Rear Wheel Bearing Oil Slinger |
| 8 | 1177 | Hub Oil Seal |
| 9 | — | Keyway (Part of 4010) |
| 10 | — | Flange (Part of 4010) |
| 11 | — | Spindle (Part of 4010) |
| 12 | 2210 | Brake Assembly (LH) |
| 13 | 1107 | Lug Bolt |
| 14 | 1202 | Bearing Cup (Rear Wheel Inner) |
| 15 | 1109 | Rear Hub |
| 16 | 1240 | Rear Wheel Bearing Outer Cone and Roller |
| 17 | 4A331 | O-Ring |
| A | — | Tighten to 90-115 Nm (70-85 Lb-Ft) |
| B | — | Tighten to 75-88 Nm (55-65 Lb-Ft). After Tightening to Specification, Ratchet Back Eight Teeth or Notches (1/6 Turn) on the Hub Nut. Eight Clicks Must Be Heard During This Operation in Order to Have Performed It Correctly. |
