Section 04-02: Suspension, Rear
1996 F-Series and Bronco Workshop Manual
REMOVAL AND INSTALLATION

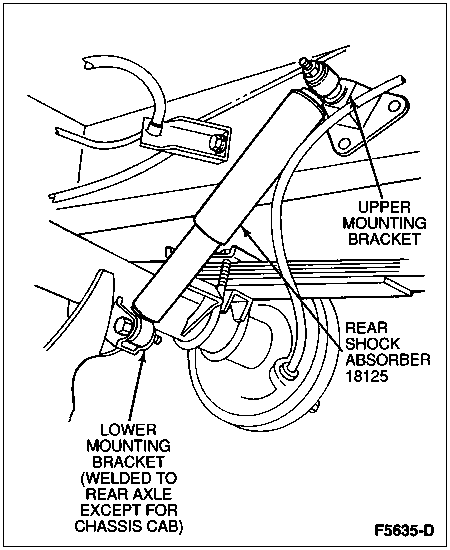

Shock Absorber, F-150, F-250, F-350, F-Super Duty Chassis Cab and Bronco

Removal

  1.  CAUTION: The low pressure gas shock absorbers are charged with nitrogen gas to 931 kPa (135 psi). Do not attempt to open, puncture or apply heat to the shock absorbers.

    Raise the vehicle on a hoist and support rear axle (4001) with Rotunda Hi-Lift Jack 164-R3508 or 164-R3513 or equivalent.

  1. Remove the shock absorber lower attaching nut and bolt, and swing the lower end free of the mounting bracket on the rear axle.

  1. Remove the nut from the upper shock absorber mount.



Installation

  1. Follow removal procedures in reverse order.

  1. Tighten upper attaching nut to 53-73 Nm (39-53 lb-ft) and lower axle nut to 53-73 Nm (39-53 lb-ft).
