Section 04-01A: Suspension, Front, 4x2
1996 F-Series Workshop Manual
REMOVAL AND INSTALLATION

Bumper, Front, F-Super Duty Chassis Cab

Removal

  1. Raise vehicle on a hoist and position suitable safety stands under vehicle.

  1. Remove the attaching nut and remove the front suspension bumper (3020) from the bracket.



Installation

  1. Position the front suspension bumper and install the attaching nut. Tighten nut to 30-40 Nm (22-30 lb-ft).

  1. Remove safety stands and lower vehicle.

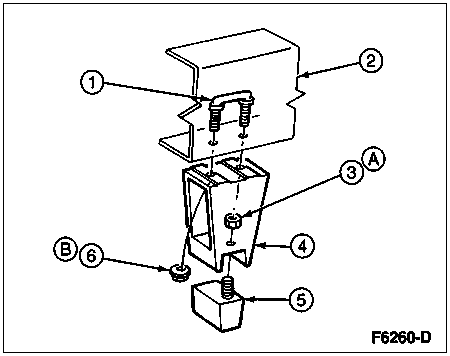

    ItemPart NumberDescription
    1805008U-Bolt
    25005Frame
    3620468Nut
    43B251Bumper Mounting Bracket
    53020Front Suspension Bumper
    6620483Nut
    A—Tighten to 30-40 Nm
    (22-30 Lb-Ft)
    B—Tighten to 77-103 Nm
    (57-76 Lb-Ft)
