Section 04-01A: Suspension, Front, 4x2
1996 F-Series Workshop Manual
REMOVAL AND INSTALLATION

Bumper, Front, F-150, F-250, F-350

Removal

  1. Remove hex-head bolt attaching front suspension bumper (3020) to frame (5005). Remove front suspension bumper.

Installation

  1. NOTE: The rearward set of holes is for F-150, F-250, F-350 4x2 vehicles only. The forward set of holes is for F-150 4x4 and Bronco only.

    Place the front suspension bumper in position under the frame and spring upper seat. Position front suspension bumper in rearward set of holes on right side of the frame.

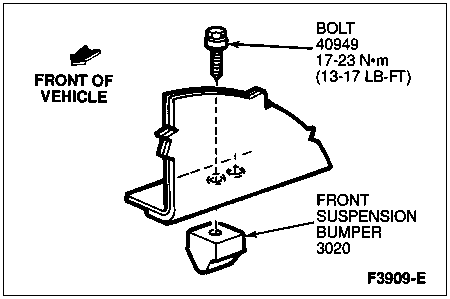

  1. Install bolt or screw and tighten to 17-23 Nm (13-17 lb-ft).
