Stabilizer Bar, F-Super Duty Chassis Cab

Removal

1. Disconnect the left and right ends of the front stabilizer bar (5482) from the front stabilizer bar link (5K483) attached to the frame side rail mounting brackets.

2. Disconnect the retainer bolt and remove the front stabilizer bar from front axle.

3. Disconnect the front stabilizer bar links by removing from the frame side rail mounting brackets.

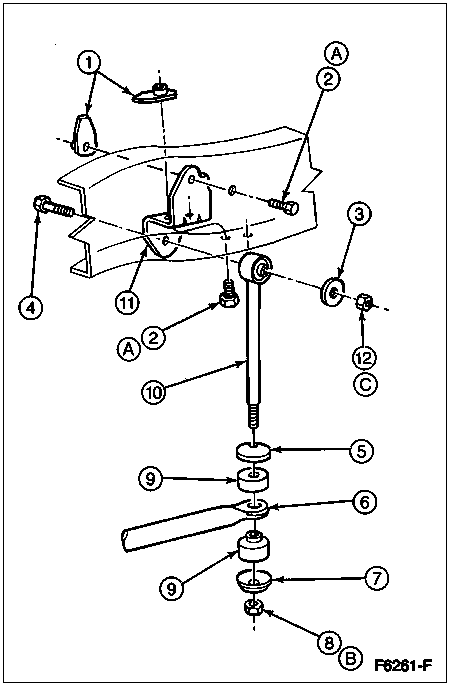

   Front Stabilizer Bar, F-Super Duty Chassis Cab







   Item	Part Number	Description
   1	802158	Stamped Nut
   2	605546	Bolt
   3	801527	Washer
   4	605704	Bolt
   5	18171	Washer (Upper)
   6	5482	Front Stabilizer Bar
   7	18041	Washer (Lower)
   8	384485	Nut
   9	5493	Lower Suspension Arm Stabilizer Bar Insulator
   10	5K483	Front Stabilizer Bar Link
   11	5486	Stabilizer Bar Bracket
   12	620469	Nut
   A	—	Tighten to 47-63 Nm (35-46 Lb-Ft)
   B	—	Tighten to 24-31 Nm (18-23 Lb-Ft)
   C	—	Tighten to 47-63 Nm (35-46 Lb-Ft)

Installation

1. Loosely assemble the entire front stabilizer bar system:

   1. Both front stabilizer bar links loosely attached to the frame mounting brackets and,
   2. Front stabilizer bar in position on the axle.

2. Make sure the rack and pinion mounting bracket insulators (5484) are seated in the retainers and the front stabilizer bar is centered between the front leaf springs.

3. Attach the front stabilizer bar to the axle by assembling the retainers to the axle mounting brackets. Tighten the retainer screws to 48-68 Nm (35-50 lb-ft).

4. Install the front stabilizer bar links to the frame mounting brackets using the bolts, washers and lock nuts. Tighten the lock nut to 47-63 Nm (35-46 lb-ft).

5. Install the front stabilizer bar link to front stabilizer bar with two cup washers, two rack and pinion mounting bracket insulators and one lock nut. Tighten the lock nut to 21-32 Nm (15-24 lb-ft).
