Shock Absorber, F-Super Duty

Removal

1. Remove front shock absorber nut and bolt to the upper front shock absorber mounting bracket (18183).

2. Remove front shock absorber nut and bolt to the eyes on the spring spacer.

3. Remove the front shock absorber (18124) from the vehicle.

Installation

1. Position the front shock absorber in the upper front shock absorber mounting bracket. Install the nut and bolt and tighten to specification as follows.

   • F-Super Duty Chassis Cab: 53-72 Nm (39-53 lb-ft).
   • F-Super Duty Motorhome: 300-407 Nm (221-300 lb-ft).

2. Position the lower end of the front shock absorber in the spring spacer eyes. Install the nut and bolt and tighten to specification as follows.

   • F-Super Duty Chassis Cab: 53-72 Nm (39-53 lb-ft).
   • F-Super Duty Motorhome: 300-407 Nm (221-300 lb-ft).

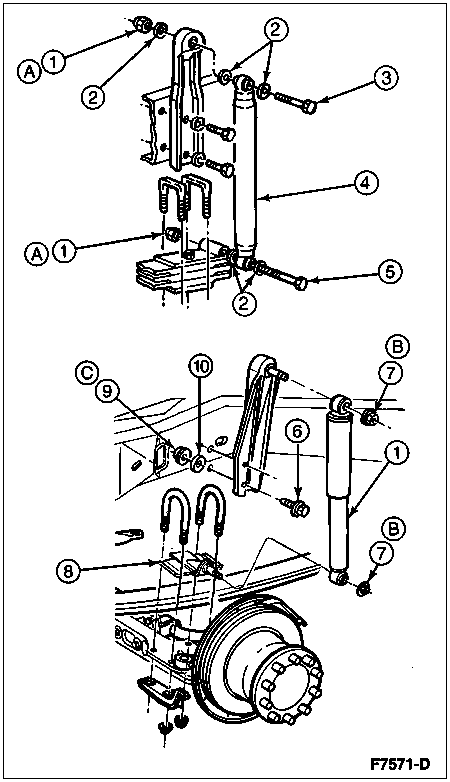

   Item/th>	Part Number/th>	Description
   1	34992-S2	Nut, 3/4-10 Hex Flange
   2	383053-S2	Washer
   3	58749-S2	Bolt, 3/4-10 x 4.0 Hex-Head
   4	18124	Front Shock Absorber
   5	58756-S2	Bolt, 3/4-10 x 7.0 Hex-Head
   6	N802115-S2	Bolt
   7	N806085-S8	Nut and Washer, M12-1.75 Hex
   8	5458	Spacer, Front Spring Plate
   9	N620483-S2	Nut
   10	N801527-S2	Washer
   A	—	Tighten to 300-407 Nm (221-300 Lb-Ft)
   B	—	Tighten to 53-72 Nm (39-53 Lb-Ft)
   C	—	Tighten to 68-92 Nm (50-68 Lb-Ft)
