Sensor Indicator, Anti-Lock Brake

Removal

1. Raise vehicle on hoist. Refer to Section 00-02.

2. Remove wheel and tire assembly.

3. Remove front disc brake caliper (2B121), rotor and hub assemblies. Refer to Section 06-03.







4.  CAUTION: Discard front brake anti-lock sensor indicator (2C182) after removal. Do not reuse old ring.

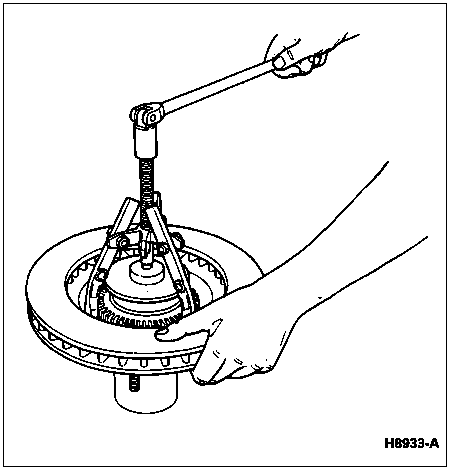

   Using a 3-jaw puller, remove front brake anti-lock sensor indicator from hub.







Installation

1. Support center of hub so that wheel studs do not rest on work surface.

2.  CAUTION: When performing the following step, make sure indicator ring is pressed on straight.

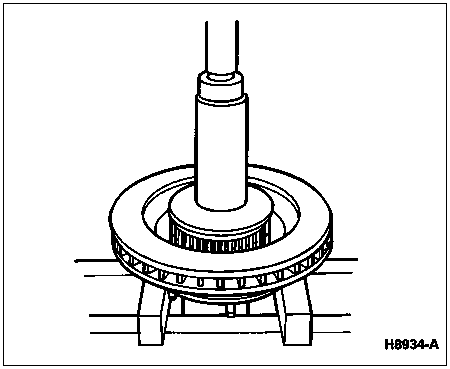

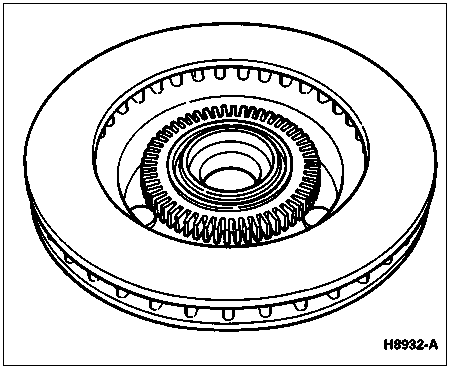

   Position new front brake anti-lock sensor indicator on front disc brake hub and rotor (1102). Using a cylinder with 79mm (3.1-inch) ID and 96mm (3.8-inch) OD, press the front brake anti-lock sensor indicator onto the hub. The front brake anti-lock sensor indicator must be fully seated against the shoulder in the front disc brake hub and rotor.







3. Install hub, rotor and caliper assemblies. Refer to Section 06-03.

4. Install wheel and tire assembly. Tighten wheel lug nuts (1012) to 115-142 Nm (85-105 lb-ft).
