Spring, Coil, F-150

 CAUTION: The axle must be supported on the jack throughout spring removal and installation and must not be permitted to hang by the front brake hose (2078). If the length of the front brake hose is not sufficient to provide adequate clearance for removal and installation of the front coil spring (5310), the disc brake caliper (2B120) must be removed from the front wheel spindle (3105) according to the procedures specified in Section 06-03. After removal, the disc brake caliper must be placed on the frame or otherwise supported to prevent suspending the disc brake caliper from the front brake hose. These precautions are absolutely necessary to prevent serious damage to the tube portion of the caliper hose assembly.

Removal

1. Raise the front of the vehicle and place safety stands under the frame and a jack under the axle. Refer to Section 00-02 for hoisting instructions.

2. Remove the wheel and tire assembly. Refer to Section 04-04.

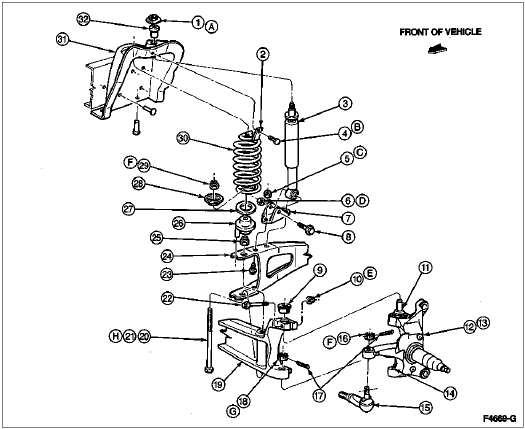

   Front Spring and Shock Absorber, F-150, F-250, F-350







   Item	Part Number	Description
   1	N806246-S56	Nut and Washer
   2	5A333	Retainer
   3	18124	Front Shock Absorber
   4	40949	Bolt
   5	N62048	Nut
   6	N806496	Nut
   7	18126	Lower Shock Bracket
   8	805033	Bolt
   9	3B404	Caster and Camber Adjuster
   10	800937	Nut
   11	5414	Front Spring Insulator
   12	3105	Front Wheel Spindle (RH)
   13	3106	Front Wheel Spindle (LH)
   14	3050	Front Suspension Lower Arm Ball Joint
   15	3B008	Steering Arm and Drag Link
   16	800895	Nut
   17	642569	Cotter Pin
   18	383489	Nut
   19	3006	Front Axle
   20	388727	Bolt (F-150)
   21	389574	Bolt (F-250, F-350)
   22	606085	Bolt
   23	605920	Bolt
   24	3405	Radius Arm
   25	34992	Nut
   26	5A307	Lower Spring Seat
   27	5414	Front Spring Insulator
   28	18183	Front Shock Absorber Mounting Bracket
   29	34992	Nut
   30	5310	Front Coil Spring
   31	5B315	Upper Spring Seat
   32	18198	Insulator
   A	—	Tighten to 34-48 Nm (25-35 Lb-Ft)
   B	—	Tighten to 18-23 Nm (13-18 Lb-Ft)
   C	—	Tighten to 32-58 Nm (23-42 Lb-Ft)
   D	—	Tighten to 60-80 Nm (44-59 Lb-Ft)
   E	—	Tighten to 68-92 Nm (50-67 Lb-Ft)
   F	—	Tighten to 112-152 Nm (83-112 Lb-Ft)
   G	—	Tighten to 112-152 Nm (83-112 Lb-Ft)
   H	—	Tighten to 340-460 Nm (250-339 Lb-Ft)

3. Disconnect the front shock absorber (18124) from the lower bracket.

4. Remove the spring upper retainer attaching bolts or screws from the top of the spring upper seat and remove the retainer.

5. Remove spring lower retainer nut to lower seat and front spring insulator (5414) and axle. Remove the retainer.

Installation

1. Install the front coil spring and slowly raise the axle.

2. Position the spring lower retainer over the stud, front spring insulator and seat. Install attaching nut.

3. Position the upper retainer over the front coil spring and against the spring upper seat. Install attaching screw.

4. Tighten the upper retainer attaching and lower retainer attaching nut to specifications as follows:

   • upper retainer 18-23 Nm (13-18 lb-ft)
   • lower retainer 112-152 Nm (83-112 lb-ft)

5. Connect the front shock absorber to the lower bracket. Install the lower bolt with the head toward the tire and tighten the nut to 70-100 Nm (52-74 lb-ft).

6. Install the wheel and tire assembly. Refer to Section 04-04. Remove the jack and safety stands and lower the vehicle.
