Section 03-14: Engine Controls, Electronic
1996 F-150, F-250, F-350, F-Super Duty Series and Bronco Vehicles Workshop Manual
REMOVAL AND INSTALLATION

Camshaft Position (CMP) Sensor

Diesel Engine

Removal

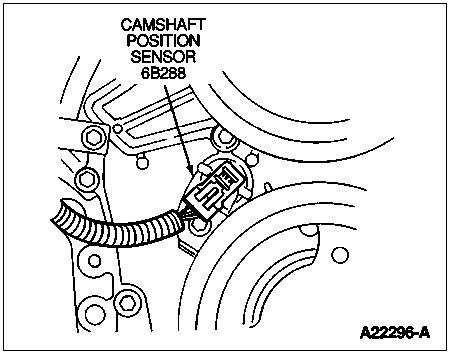

  1. Disconnect camshaft position sensor electrical connector.

  1. Remove bolt and camshaft position sensor.





Installation

  1. Install CMP sensor and bolt.

  1. Connect CMP sensor electrical connector.
