Section 03-14: Engine Controls, Electronic
1996 F-150, F-250, F-350, F-Super Duty Series and Bronco Vehicles Workshop Manual
REMOVAL AND INSTALLATION

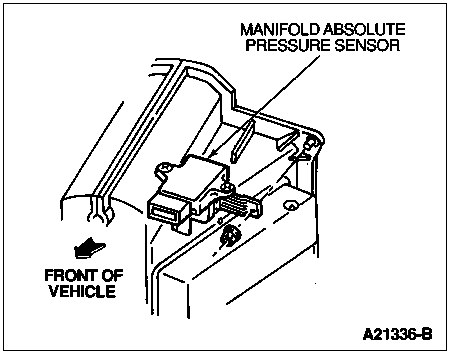

Manifold Absolute Pressure (MAP) Sensor, MFI Gasoline Engines Except 5.0L

Removal

  1. Disconnect negative battery cable.

  1. Disconnect vacuum source from manifold absolute pressure sensor (MAP sensor) (9F479).

  1. Remove fasteners attaching manifold absolute pressure sensor and bracket assembly below cowl drip rail.

  1. Remove MAP sensor fasteners on A/C evaporator case.



Installation

  1. Follow removal procedures in reverse order.
