Air Cleaner Outlet Tube, 7.3L Direct Injection Diesel Engine

Removal

1. Loosen clamp retaining engine air cleaner duct tube adapter (9B676) to air cleaner assembly.

2. Loosen clamp retaining tube to turbocharger air intake tube. Remove air cleaner duct.

Installation

1. Follow removal procedures in reverse order.

2. Tighten clamp to 1.5-2.5 Nm (14-22 lb-in).

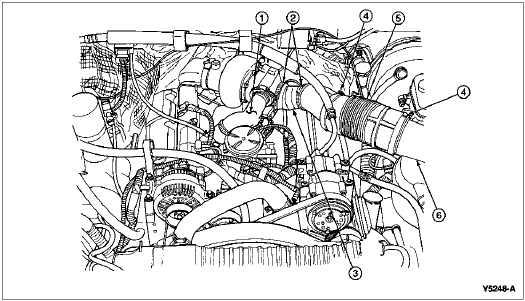

   Turbocharger Air Intake Tube Assembly







   Item	Part Number	Description
   1	—	Air Inlet Manifold Crossover Pipe (Part of 6K682)
   2	—	Compressor Duct Clamp (Part of 6K682)
   3	—	Compressor Duct (Part of 6K682)
   4	—	Engine Air Cleaner Duct Tube Adapter Clamp (Part of 9B676)
   5	9B676	Engine Air Cleaner Duct Tube Adapter
   6	9600	Engine Air Cleaner
