Section 03-07B: Glow Plug System | 1996 F-250, F-350, F-Super Duty Equipped with 7.3L Diesel Engines Workshop Manual |
Removal
CAUTION: Do not use a screwdriver or similar tool to pry off the terminal cover. Battery voltage is present at the terminals.
Disconnect ground cables at batteries.
Remove glow plug relay plastic terminal cover.
Disconnect battery terminal connector (12-V power wire), glow plug relay connector and harness connector.
Remove mounting screws and lift glow plug relay (12A343) from engine (6007). Inspect the plastic base and relay housing for cracks. Replace, if damaged.
Installation
Follow removal procedures in reverse order.

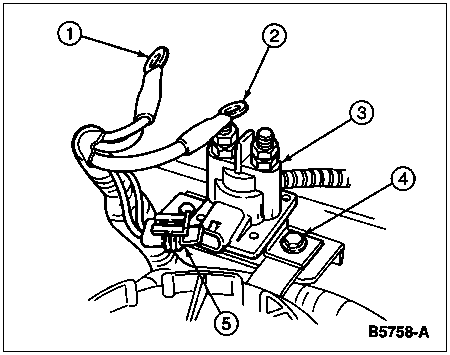

| Item | Part Number | Description |
|---|---|---|
| 1 | — | Glow Plug Relay Connector (Part of 9A451) |
| 2 | — | Battery Terminal Connector (Part of 9A451) |
| 3 | 12A343 | Glow Plug Relay |
| 4 | — | Glow Plug Relay Mounting Bolts (Part of 12B533) |
| 5 | — | Relay Control Harness (Part of 9A451) |
