Starter Motor

Removal

1. Disconnect battery ground cable (14301).

2. Raise vehicle on a hoist.

3. Disconnect wiring from starter terminals.

4. Remove attaching bolts and remove starter motor (11001).

Installation

1. Position starter motor and hand-start attaching bolts.

2. Snug all bolts while holding starter motor squarely against its mounting surface and fully inserted into pilot hole.

3. Tighten bolts to 20-27 Nm (15-20 lb-ft).

4. Connect wire at solenoid S terminal.

5. Position battery cable on solenoid B terminal and install attaching nut. Tighten nut to 9-14 Nm (89-106 lb-in).

6. NOTE: When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the powertrain control module (PCM) (12A650) relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

   Lower vehicle and connect battery ground cable. Check operation of starter motor.

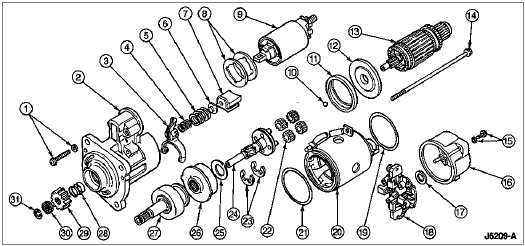

   Starter Motor, Disassembled View



   Item	Part Number	Description
   1	—	Screw (Part of 115091)
   2	11130	Drive End Housing
   3	11067	Drive Lever and Pin
   4	—	Spring (Part of 11103)
   5	—	Spring (Part of 11103)
   6	—	Pivot Plate (Part of 11103)
   7	—	Packing (Part of 11103)
   8	11135	Shims
   9	11390	Starter Solenoid
   10	—	Steel Ball (Part of 11005)
   11	—	Seal Ring (Part of 11005)
   12	11130	Center Plate
   13	11005	Starter Motor Armature
   14	11091	Thru Bolt
   15	—	Screw (Part of 11049)
   16	11049	Brush End Plate and Bushing
   17	—	Washer (Part of 11005)
   18	11061	Brush Holder
   19	11217	Seal, Rear
   20	11083	Frame Assembly
   21	11217	Seal, Front
   22	—	Pinions (Part of 11355)
   23	—	E-Clips (Part of 11355)
   24	11355	Output Shaft
   25	—	Thrust Washer (Part of 11355)
   26	11A165	Stationary Gear
   27	11350	Starter Drive
   28	—	Spring (Part of 11350)
   29	11363	Pinion
   30	11223	Stop Ring
   31	—	Stop Ring Retainer (Part of 11350)
